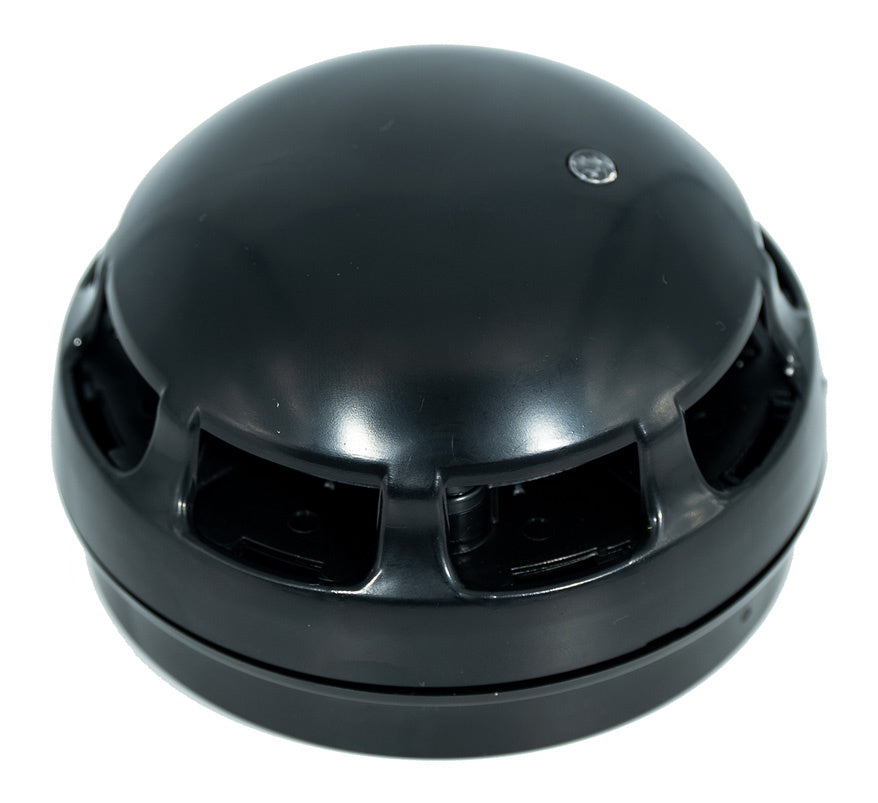

The Fike Sita 205-0001-B is the black version of the Sita addressable multipoint ASD detector with built-in sounder, for Fike Duonet, Quadnet and CIE-A-200/400 addressable fire systems.
It is a plug-in detector with a photo-electric smoke chamber and a thermistor heat sensor, so one device can be set for smoke, heat or combined detection, while its integral sounder provides the alarm signal from the same loop address.
Key features
- Photo-electric smoke chamber plus thermistor heat sensing, configurable for smoke, heat or combined detection
- Smoke modes SM1 to SM3 (thermally enhanced optical) and heat modes HM1 (rate of rise to 58°C), HM2 (fixed 58°C) and HM3 (fixed 90°C), set from the panel or OSP software
- Built-in sounder with 7 sound patterns (SP1 to SP7) plus sounder off (SP0), and low, medium and high volume settings
- Soft addressed: addresses are allocated automatically by the control panel during initialisation
- Tamper-resistant locking mechanism; removed with the Fike head removal tool (25-0046-201) or keyring (23-0244-510)
- Remote LED output (Fike 600-0092) or auxiliary input/output via the Sita multipoint boxed auxiliary I/O module
- Base shorts loop +IN to +OUT until the head is fitted, for continuity testing
- Two-stage head contamination warning
Technical specifications
- Part number: 205-0001-B (black); standard Fike part 205-0001 (Sita Multipoint ASD with Sounder)
- Standards: EN 54-3, EN 54-5, EN 54-7, EN 54-17, EN 54-18
- Voltage range (loop): 24 to 42 V DC
- Operating temperature: -10°C to +50°C
- IP rating: IP21C
- Diameter: 107 mm
- System compatibility: Duonet, Quadnet and CIE-A-200/400 V1 onwards
- Cable: 2-core 1.5 mm² screened fire-resistant, wired as a loop (no spurs)
- Depth including base: 67 mm
- Sounder output at 1 m (dual tone): low 65+ dB(A), medium 80 dB(A), high 85 dB(A)
- Loop current: quiescent 0.12 mA; alarm with sounder low / medium / high 1.48 / 4.03 / 5.84 mA
- DLU rating: 1 (sounder off), 1.5 / 4.5 / 6 (low / medium / high)
