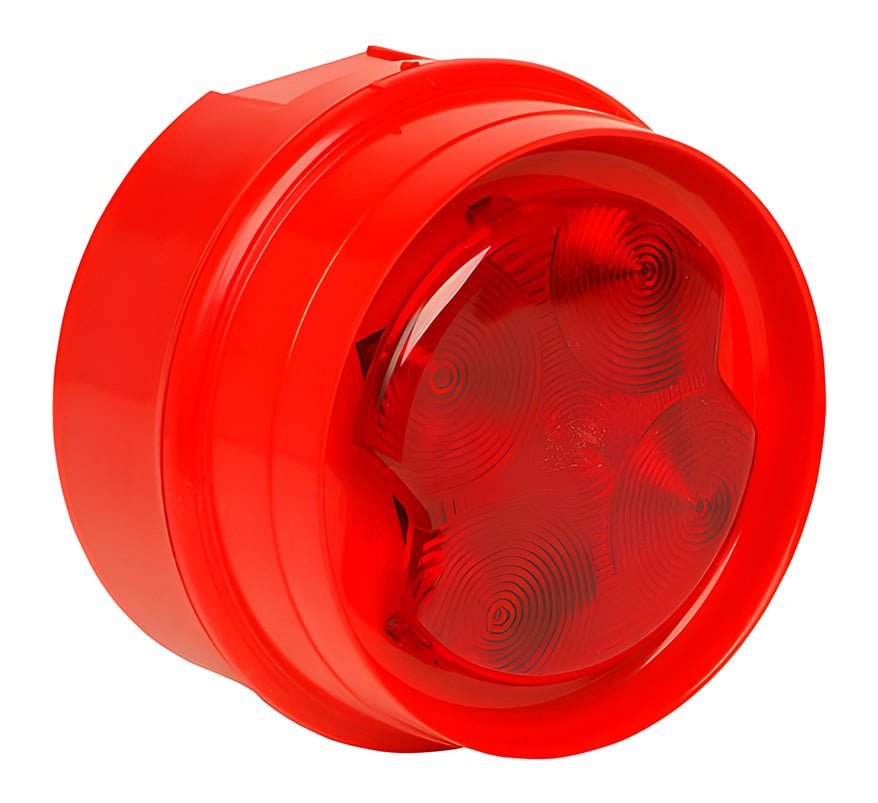

The Fike Sita 326-0021-R is an addressable sounder strobe with a low profile base, for Fike Duonet, Quadnet and CIE-A-200 addressable fire systems.
It provides audible and visual indication when the system goes into alarm, and connects directly to the addressable loop.
Key features
- Addressable sounder with built-in LED visual indication beacon
- Integral short circuit isolator
- 7 sound patterns (SP1 to SP7) plus sounder off (SP0), with low, medium and high volume, configured with the panel OSP software
- Beacon operates whenever the sounder is commanded; select SP0 for beacon-only operation
- Soft addressed: address allocated automatically by the control panel
- Locking arrangement helps prevent unauthorised removal from the base
- Low profile base; the device is released with a small tool through the hole in the base
Technical specifications
- Part number: 326-0021-R (Sita Sounder Strobe with Short Circuit Isolator, Low Profile)
- Standards: EN 54-3, EN 54-17
- Voltage range (loop): 24 to 42 V DC
- Sound output at 1 m (dual tone): low 65+ dB(A), medium 84 dB(A), high 88 dB(A)
- Loop current: quiescent 0.18 mA; alarm low / medium / high 9.5 / 11.5 / 13.5 mA
- DLU rating: 9 (sounder off), 9.5 / 11.5 / 13.5 (low / medium / high)
- Operating temperature: -10°C to +50°C
- IP rating: IP21C (indoor use)
- Flammability: UL94-V2
- Diameter: 97 mm
- Cable: 2-core 1.5 mm² screened fire-resistant, wired as a loop (no spurs)
- Depth including low profile base: 60.5 mm
- System compatibility: Duonet and Quadnet V1 onwards; CIE-A-200 V1 onwards
