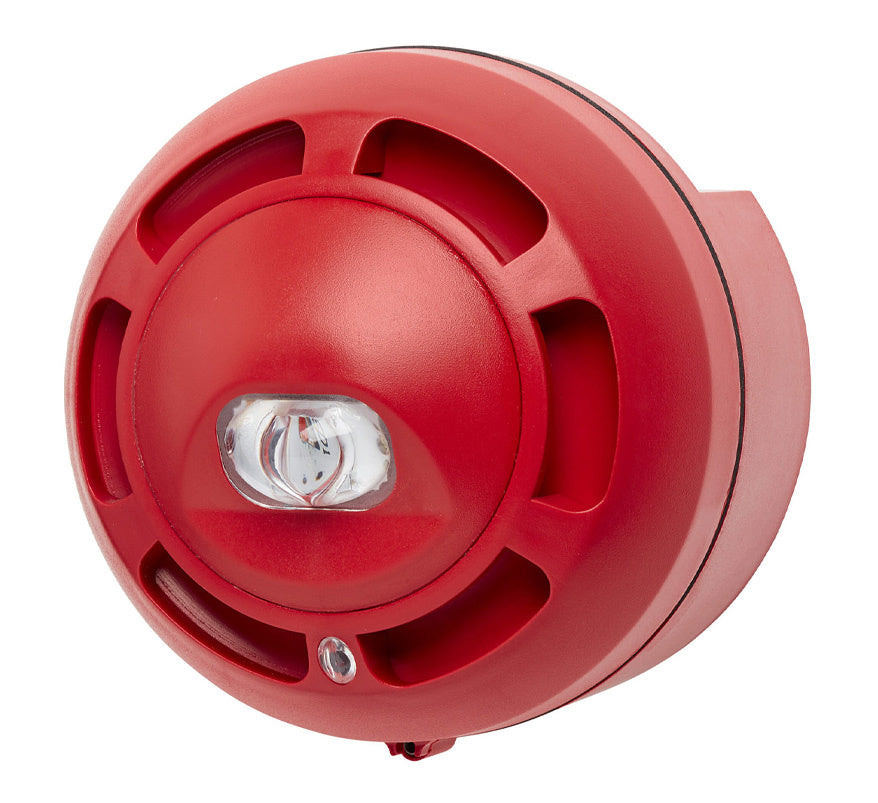

The Fike Twinflex F0296336 is a red wall-mounted 2-wire, zone-powered sounder with visual alarm device (VAD) for Fike Twinflex fire alarm systems.
It gives audible and visual indication when the system goes into alarm, with an EN 54-23 category W VAD, and is compatible with Twinflex V3, Pro and Pro² panels.
Key features
- Zone-powered device for Twinflex 2-wire systems; mixes on the same zone as Twinflex ASD detectors
- DIP switch selection of volume (high/low) and 3 sound patterns: alternating 800/970 Hz, continuous 970 Hz, or sweep 800 to 970 Hz
- Built-in end-of-line function, enabled by DIP switch on the last device
- IP65 when fitted with the supplied gasket and O-ring and suitable glands
- Twist-lock front onto base
- Selectable flash rate: every 1 second or every 2 seconds
- Wall-mount VAD: mount 2.4 m from floor to centre of device for a coverage volume of 7.5 m
Technical specifications
- Part number: F0296336
- Standards: EN 54-3 (Type A) and EN 54-23 (category W, W-2.4-7.5)
- Sound output: high 95+ dB(A); low 65+ dB(A)
- Dimensions: 104 mm diameter x 80 mm high
- Operating temperature: -25°C to +75°C
- Voltage: 25.5 to 35.5 V DC (mains-powered panel); 21 to 26 V DC (battery-powered panel)
- Current: quiescent 144 µA; VAD + sounder high 26.0 mA, low 18.0 mA; VAD only 16.0 mA
- Loading (Pro² panel): high 28 DLU; low 20 DLU (maximum 160 DLU per zone)
- IP rating: IP65 + IP33C
- Flammability: UL94-V2
- Compatibility: Twinflex V3, Pro and Pro² panels
