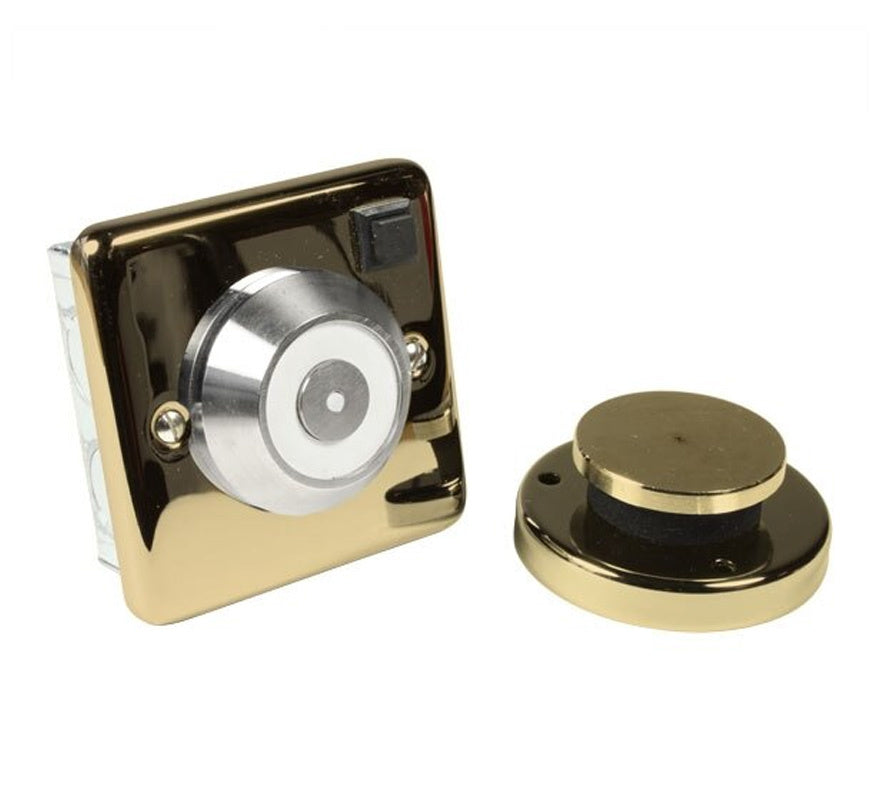

The Geofire Decorative fire door holder (3-59-0302-E001) is a 230V AC wall-mounted electromagnetic fire door holder in a lacquered brass finish. It holds fire doors open and releases them to close when the fire alarm operates, and is particularly suitable for prestigious installations such as offices, hotels and conference centres.
The keeper plate is supplied with a matching finish. The magnet comes with a standard single-gang electrical back box so it can be flush mounted; a matching surface mounting sleeve with two 20mm entry holes and blanking plugs is available if required.
Key features
- High quality lacquered brass finish with matching keeper plate
- 200N holding force with zero residual force
- Flush mounting on a standard single-gang back box (supplied), or surface mounting with an optional sleeve
- Manual release switch
- Approved to EN 1155
- CE marked under the Construction Products Regulation
Technical specifications
- Supply: 230V AC (24V DC version also available)
- Holding force: 200N
- Residual force: zero
- Finish: lacquered brass
- Mounting: wall, flush or surface
- Approvals: EN 1155, CE (CPR)
- Warranty: 12 months
What's in the box
- Decorative electromagnet
- Matching keeper plate
- Single-gang electrical back box
