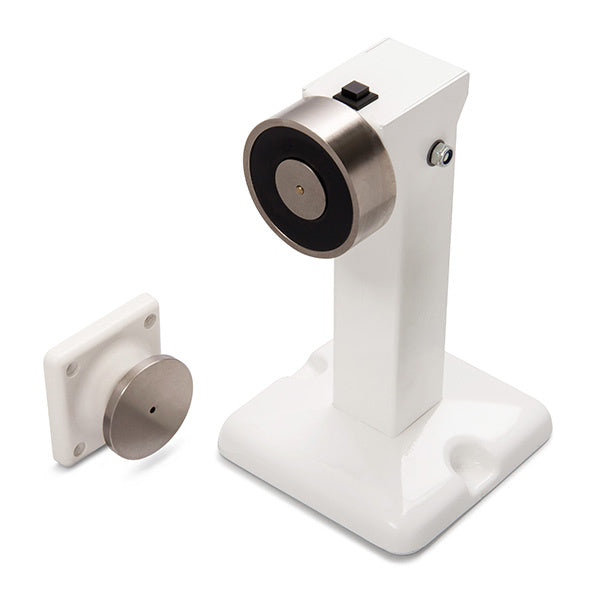

The Geofire Universal electromagnetic fire door holder (3-79-06200) is a 24V DC door holder with a 1000N holding force and a 200mm stand. It holds fire doors open and releases them when the fire alarm operates. With the magnet set as supplied it can be floor or ceiling mounted, and turning the magnet through 90° puts it in the wall-mounting configuration.
The stand and adjustable head are fabricated from steel for a very robust structure, and a moulded cover conceals the mounting fixings once fitted. The stand can be cut down to a shorter length on site. A keeper plate is supplied.
Key features
- Floor, wall or ceiling mounting
- Robust steel stand and adjustable head
- 1000N holding force with zero residual force
- Keeper plate adjustment ±30°
- Moulded cover conceals fixings
- Stand can be cut down on site
- Approved to EN 1155 and CE marked under the Construction Products Regulation
Technical specifications
- Supply: 24V DC
- Current: 76mA
- Holding force: 1000N
- Residual force: zero
- Stand length: 200mm
- Keeper adjustment: ±30°
- Finish: electroplated / painted white
- Part number: 3-79-06200
- Warranty: 12 months
What's in the box
- Universal door holder with 200mm stand
- Keeper plate
- Moulded fixing cover
