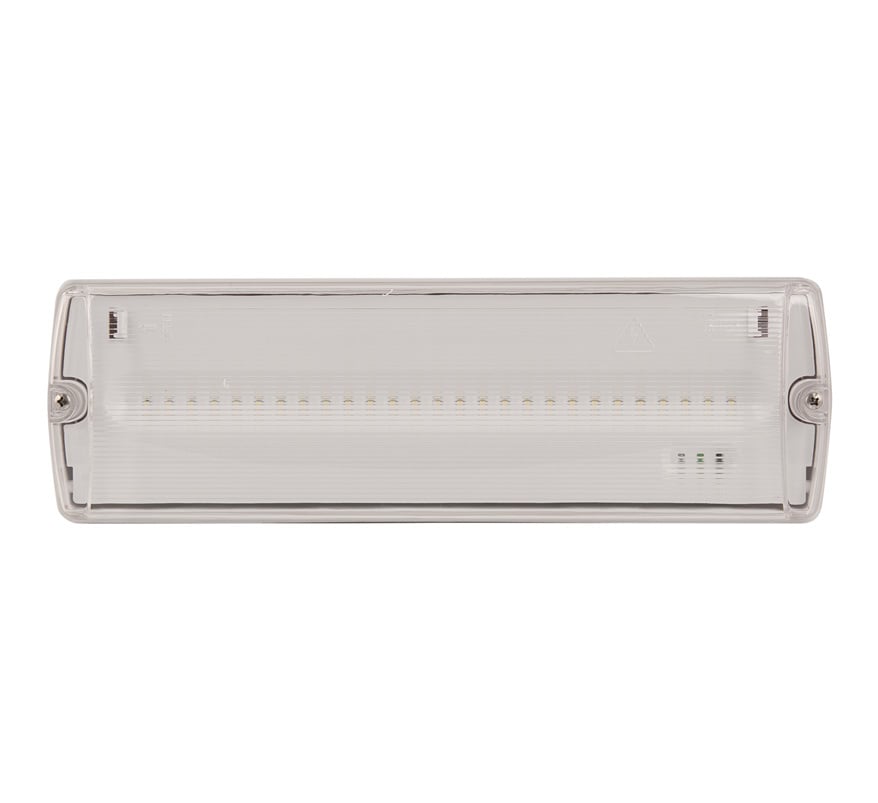

The Hispec Emerald HSEM/LED-ST is the self-test version of the Emerald universal LED emergency bulkhead. It can be set for maintained or non-maintained operation, gives at least 3 hours of emergency lighting from its lithium battery and is IP65 rated, so it suits corridors, plant rooms, stairwells and outdoor escape routes. It is made in accordance with BS EN 60598-2-22.
Key features
- Self-test version (HSEM/LED-ST)
- Maintained or non-maintained operation
- 3-hour emergency duration
- Long-life LiFePO4 lithium battery
- Hinged gear tray and push-fit terminals
- Multiple 20mm entry points, 20mm stuffing gland included
- Stick-on legends included
- IP65 rated
Technical specifications
- Product code: HSEM/LED-ST
- Rated voltage: 220–240V AC, 50/60Hz
- Wattage: 4.5W (maintained mode), 1.2W (emergency mode)
- Lumen output: 200lm
- Colour temperature: 6000K
- Battery: LiFePO4, 3.2V
- Charging time: 24 hours
- Minimum emergency duration: 3 hours
- Ingress protection: IP65
- Protection class: Class II
- Operating temperature: -20°C to 40°C
- Dimensions: 352 x 110 x 64mm
- Weight: 496g
- Produced in accordance with: BS EN 60598-2-22
