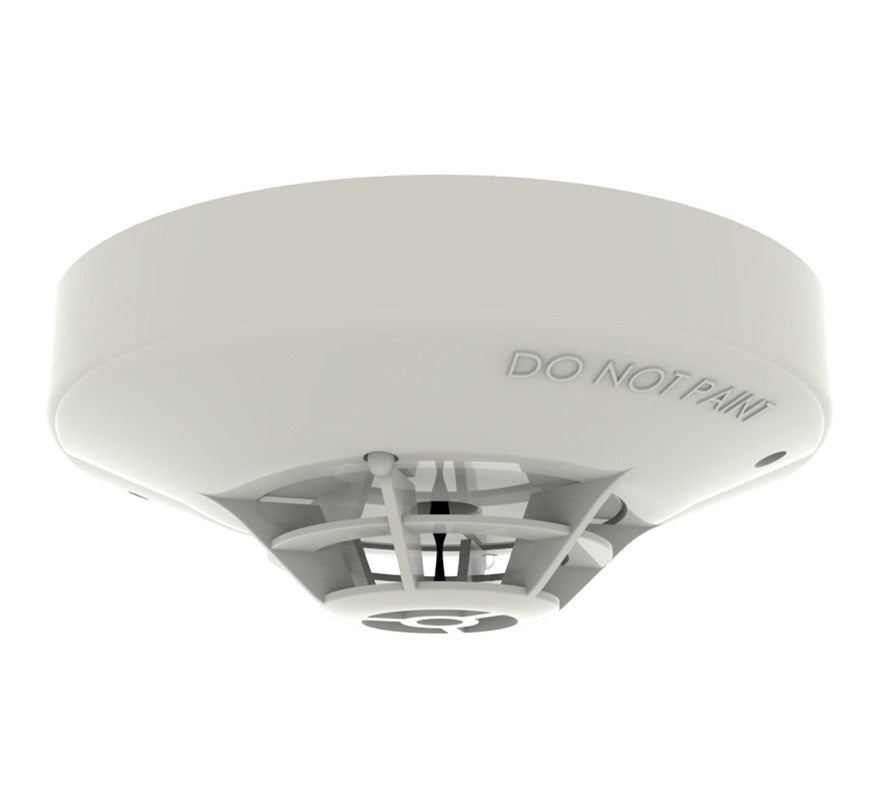

The Hochiki DCD-AE3M is a marine-approved conventional rate of rise heat detector with a 60 °C fixed temperature element. A thermistor and linearising circuit give an accurate linear response, and a third terminal provides a remote indicator output.
It suits areas with medium ambient temperatures, such as drying rooms, or places where smoke detectors are unsuitable because of steam or cooking fumes, for example a kitchen. Hochiki's marine range is based on its ESP and CDX ranges and is approved for marine use by DNV under the EU Marine Equipment Directive (MED), for ships, oil platforms, offshore installations and wind farms.
Key features
- Electronic linear heat detection
- Rate of rise with 60 °C fixed temperature element
- Remote indicator output
- Wide voltage range (9.5 to 30 VDC)
- Twin fire LEDs allow 360° viewing
- Approved for marine use by DNV
Technical specifications
- Ordering code: DCD-AE3M
- Operating voltage: 9.5 to 30 VDC
- Quiescent current: 35 µA
- Maximum current in alarm (typical): 40 mA
- Remote indicator drive: 20 mA max / 9.5 to 14 mA typical
- IP rating: IP63
- Maximum humidity: 95% RH, non-condensing (at 40 °C)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Colour / material: ivory / polycarbonate
- Compatible base: YBN-R/6M
- Base fixing centres: 48 to 74 mm
- Weight: 76 g
- Dimensions: Ø 100 x H 38 mm
- Approvals: EN54:2000 Class A1 and A1R, DNV
