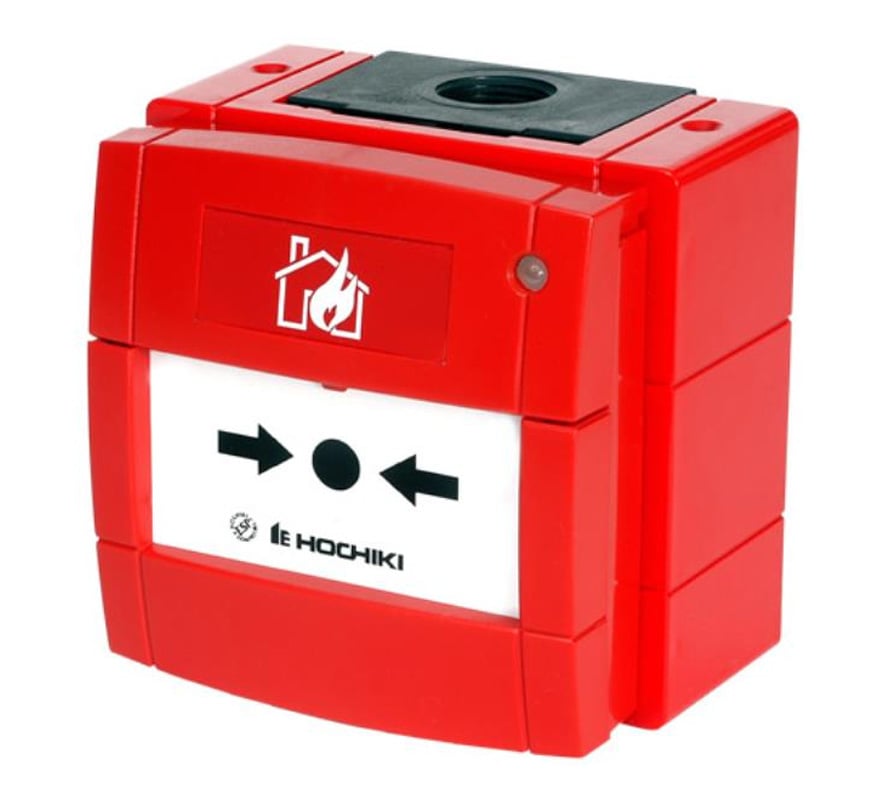

The Hochiki HCP-WM(SCI) is a marine-approved, IP67 weatherproof addressable manual call point with an integral short-circuit isolator (SCI) for the Hochiki ESP analogue addressable system. It has a bi-coloured LED: red for polling and when operated, amber when a short circuit is present. It is fitted with an EN54-compliant non-frangible (resettable plastic) element as standard, and an optional glass element is available.
Key features
- Approved to MED by DNV
- IP67 rated for outdoor and wet locations
- Integral short-circuit isolator
- Bi-coloured status LED; pulsing or non-pulsing polling LED (panel dependent)
- Non-frangible element fitted as standard (conforms to EN54)
- Test key operation from the underside; panel-initiated self-test
- Two plug-in terminal blocks for easy loop wiring
- Addressed with the Hochiki hand-held programmer and PL-3 lead
- Surface mounted; LPCB approved to EN54
Technical specifications
- Ordering code: HCP-WM(SCI)
- Ingress protection: IP67
- Colour / case material: red / modified polyphenylene oxide
- Operating voltage: 17 to 41 VDC
- Low power mode: 100 µA typical (180 µA maximum)
- Quiescent current: 250 µA typical (350 µA maximum)
- Alarm current: 5 mA typical (10 mA maximum)
- Short-circuit threshold: 430 Ω (typical)
- Transmission method: digital communication using ESP
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +60 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Weight: 234 g
- Dimensions: 98 x 94 x 78 mm (W x H x D)
- Approvals: DNV rules for classification (ships); IMO FSS Code chapter 9; location classes temperature B, humidity A, vibration A, EMC B
