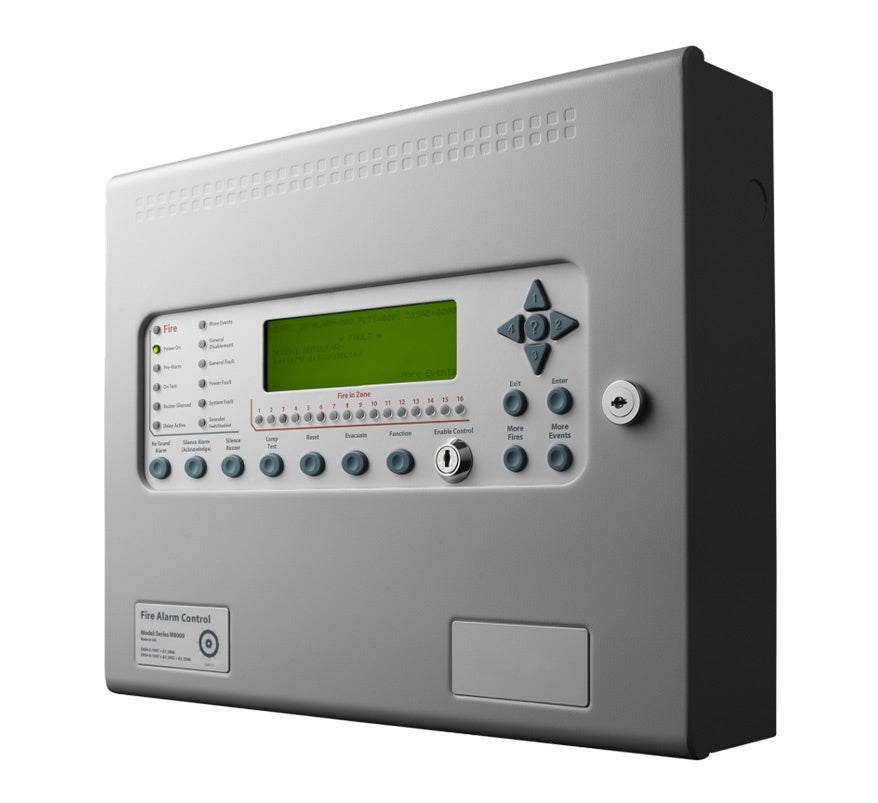

The Kentec Syncro ASM MH80161M2 is a marine and offshore analogue addressable fire alarm control panel for the Hochiki ESP protocol. It has 16 zones and one detection loop, expandable to two. Based on the Syncro AS panel, the Syncro ASM is Marine Equipment Directive approved and is certified with a number of classification societies. It suits small to medium-sized vessels and works with marine-approved Hochiki devices.
Up to 64 Syncro ASM panels can be networked, giving integrated control and indication of more than 16,000 fire alarm points. An optional Voyage Data Recorder interface, which outputs the standard NMEA 0183 protocol, can be fitted inside any panel on the network.
Key features
- Based on the Syncro AS 1-2 loop analogue addressable panel
- Marine Equipment Directive approved and certified with a number of classification societies
- Network up to 64 panels (optional fault-tolerant network card)
- 2 programmable sounder circuits, 5 programmable inputs and 3 programmable relays
- 3 A power supply
- Sensitivity adjustment and drift compensation
- Compatible with Syncro View Marine repeaters
- Event log of the last 500 events
- Installer-friendly removable equipment chassis
- Approved and certified to EN 54-2 and EN 54-4
Technical specifications
- Product code: MH80161M2
- Protocol: Hochiki ESP
- Zones: 16; loops: 1
- Construction: 1.2 mm mild sheet steel, epoxy powder coated, IP30
- Colour: BS 00 A 05 grey lid and box; RAL 7047 light grey control plates
- Dimensions: 385 x 310 x 90 mm
- Weight: 6 kg (standard panel)
- Display: 8 lines of 40 characters graphic LCD
- Power supply: 24 V DC, 3 A; mains fuse 1.6 A 250 V
- Batteries: max. 2 x 12 V 7 Ah (non-networked)
- Aux 25 V supply: fused at 500 mA
- Sounder outputs: fused at 1 A each
- Fault, fire and alarm contacts: 30 V DC 1 A
- Detection loop: 400 mA output
- Remote inputs (switched -ve): silence, fault, reset, alert and evacuate
- Ports: RS232 printer and PC ports; RS485 serial expansion port for Syncro I/O modules
- Configuration: Loop Explorer PC utility (S187 standard or X187LS economy download lead)
