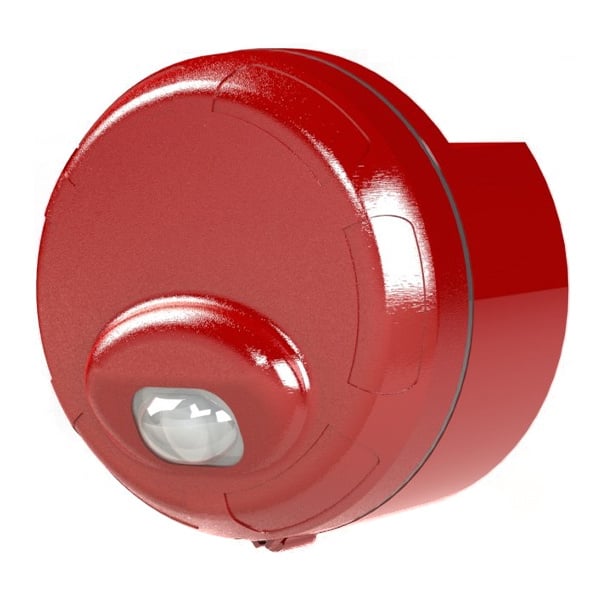

The Nittan EV-HIOP-BCN-SCI (part no. F16-82055) is an analogue addressable high output beacon for Nittan Evolution fire alarm systems. It is a Type B outdoor visual alarm device rated IP65, using a single high-power LED, with a built-in short circuit isolator on the -ve line.
It uses the Evolution FSK signalling protocol and is EEPROM addressed with a programmer. Nittan certifies the beacon to EN 54-23, with ratings of W 2.4-5.5 / 73 m³ and W 2.4-7.5 / 135 m³.
Nittan notes that +ve and -ve isolator styles cannot be mixed on one system, so check panel compatibility with Nittan technical support before specifying.
Key features
- Integrated -ve line short circuit isolator
- High-power LED beacon
- Coverage ratings W 2.4-5.5 / 73 m³ and W 2.4-7.5 / 135 m³
- IP65 rated for outdoor use (Type B)
- Evolution FSK protocol, EEPROM addressed
Technical specifications
- Beacon: 1 x high-power LED (W 2.4-5.5 / 73 m³; W 2.4-7.5 / 135 m³)
- Operating voltage: 24 to 38 V DC (35 V DC system voltage)
- Quiescent current: 200 µA
- Operating temperature: -25°C to +70°C
- Relative humidity: up to 95% RH, non-condensing
- Ingress protection: IP65
- Addressing: soft addressing, non-volatile EEPROM
- Material: ABS
- Operating current: 20 mA
- Dimensions: Ø104 x 76.5 mm
- Mass: 190 g
- Isolator Vso min / max: 9 / 11 V DC
- Isolator Vsc min / max: 10 / 13 V DC
- Isolator max. line current: 800 mA; max. switching current: 1500 mA
- Isolator max. leakage current: 13 mA; max. switch resistance: 150 mΩ
- Standards: EN 54-17 and EN 54-23
- CPR number: 0359-CPR-00465
- Manufacturer part number: F16-82055
