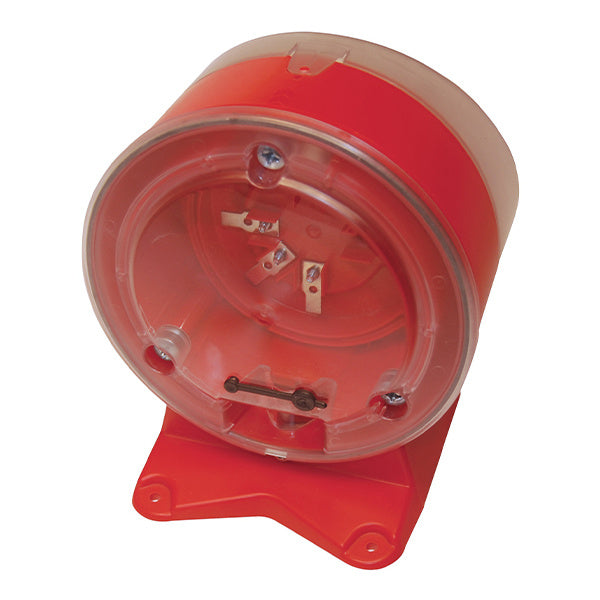

The Nittan UG-3 (part no. F05-83105) is a smoke detector housing for air duct installation, for use with Nittan Evolution and Sensortec detectors. It is an air sampling housing with a venturi pipe system and a built-in detector mounting base.
The venturi pipe is ordered separately. This listing calls for the 0.6 m pipe (F05-83111), and 1.5 m (F05-83113) and 2.8 m (F05-83114) lengths are also available. Nittan also offers a mounting bracket (F05-83112) and an outdoor IP54 cover (F05-83116).
Key features
- Duct detector housing with a venturi pipe and built-in detector mounting base
- Quick, simple installation with pre-assembled cable entries
- Error-free pipe mounting
- Test hole in the cover
Technical specifications
- Device type: air sampling system
- Operating voltage: 5 to 32 V DC
- Operating temperature: -10°C to +55°C; storage -25°C to +70°C
- Material: ABS
- Dimensions: Ø150 x 180 mm
- Mass: 800 g (UG-3 only)
- EMC: BS EN 50130-4; complies with EN 54-7
- Venturi pipe required (not included): 0.6 m F05-83111
