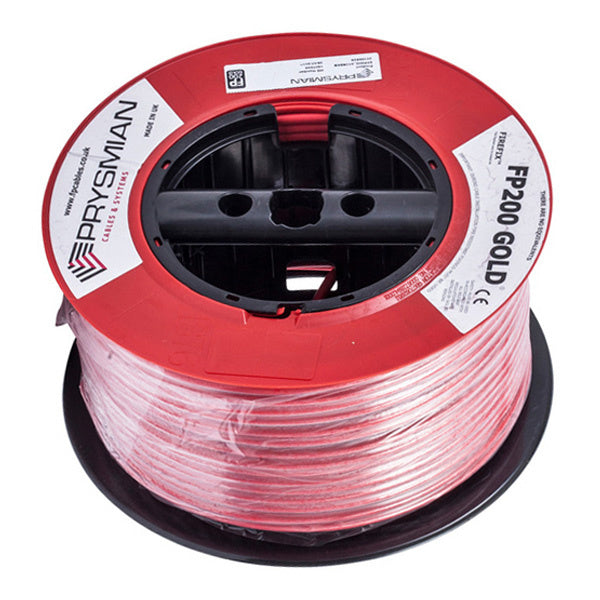

Prysmian FP200 Gold 2 core 1.5mm² fire resistant cable with a red LSOH sheath, supplied on a 100m reel. FP200 Gold is a "Standard" fire resistant cable as defined by the British Standards for fire alarm and emergency lighting systems, and is used to wire fire detection and alarm circuits, voice alarm systems, emergency and escape lighting and other life safety control circuits. It is fully screened, with a full-size circuit protective conductor (CPC) in direct contact with the screen for easy termination.
Key features
- "Standard" fire resistance for BS 5839-1 (fire alarms) and BS 5266-1 (emergency lighting) installations
- Meets BS 8519 "Control" Category 1 for life safety and firefighting control circuits
- Fully screened with aluminium metallised foil
- Full-size CPC in direct contact with the screen
- Tough Insudite® crosslinked insulation, compliant with EI5 to BS EN 50363-5
- Low Smoke, Zero Halogen (LSOH) sheath, UV resistant and suitable for outdoor installation
- Designed to meet London Underground LUL S1085
- Manufactured under ISO 9001
Technical specifications
- Cores: 2 + full-size CPC
- Conductor: 1.5mm² bare copper, Class 1 solid
- CPC: 1.5mm²
- Core colours: brown, blue
- Sheath: red, low smoke zero halogen
- Rated voltage: 300/500 V
- Nominal outer diameter: 7.9 mm
- Cable weight: 91 kg/km
- Conductor resistance at 20°C: 12.1 Ω/km
- Max. conductor temperature: 70°C; min. operating temperature: -25°C
- Installation temperature: 0°C to 60°C
- Minimum bending radius: 6 x overall diameter
- Construction standard: BS 7629-1 (Standard 60 for 2-core 1.5mm²)
- Fire resistance: BS EN 50200 PH30 and PH60 (flame and shock), BS EN 50200 Annex E (flame, shock and water, 30 minutes), BS 6387 Category CWZ
- Flame propagation: BS EN 60332-1-2; smoke emission: BS EN 61034-2; acid gas: BS EN 60754-1
- Current ratings: refer to table 4D2 of BS 7671
- Length: 100 m
