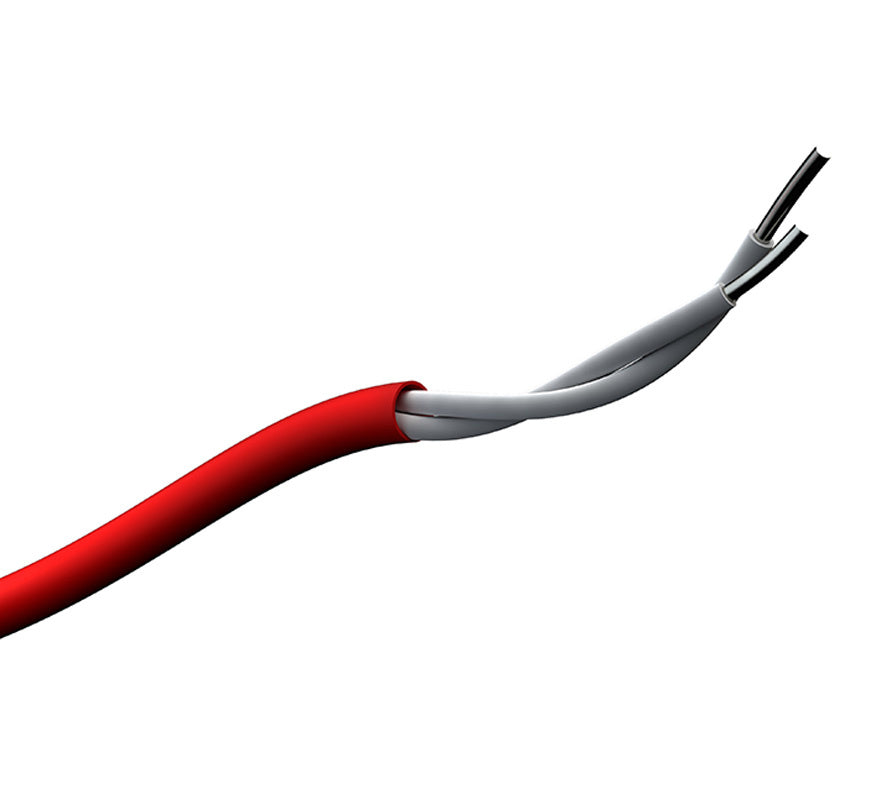

Signaline FT-105 is a fixed temperature linear heat detector cable manufactured in the UK by LGM Products. It detects a build-up of heat anywhere along its length: when any point on the cable reaches the fixed alarm temperature of 105°C an alarm is initiated. The cable can be connected to conventional and addressable fire detection systems, or monitored by the Signaline LocatorPlus dual zone monitor module. This listing is for a 50 m length.
Key features
- Fixed alarm temperature of 105°C
- Up to 3,000 m per zone
- Multiple fixing options
- Compatible with conventional systems, addressable systems and the Signaline LocatorPlus dual zone monitor module
- Suitable for hazardous areas
- Approved to FM, UL, cUL
Technical specifications
- Model: Signaline FT-105 (SL-FT-105)
- Alarm temperature: 105°C (220°F)
- Maximum ambient temperature: 85°C (185°F)
- Conductor resistance: 0.1 Ω/m (0.029 Ω/ft) at 20°C
- Maximum voltage: 42 V DC or 30 V AC
- Dielectric withstand (UL): 500 V DC
- Tensile strength: 1700 N/mm²
- Minimum bend radius: 75 mm
- Overall diameter: 3.5 mm
- Weight: 13 kg per 500 m
- Outer sheath material: PVC
- Approvals: FM, UL, cUL
- Length supplied: 50 m
