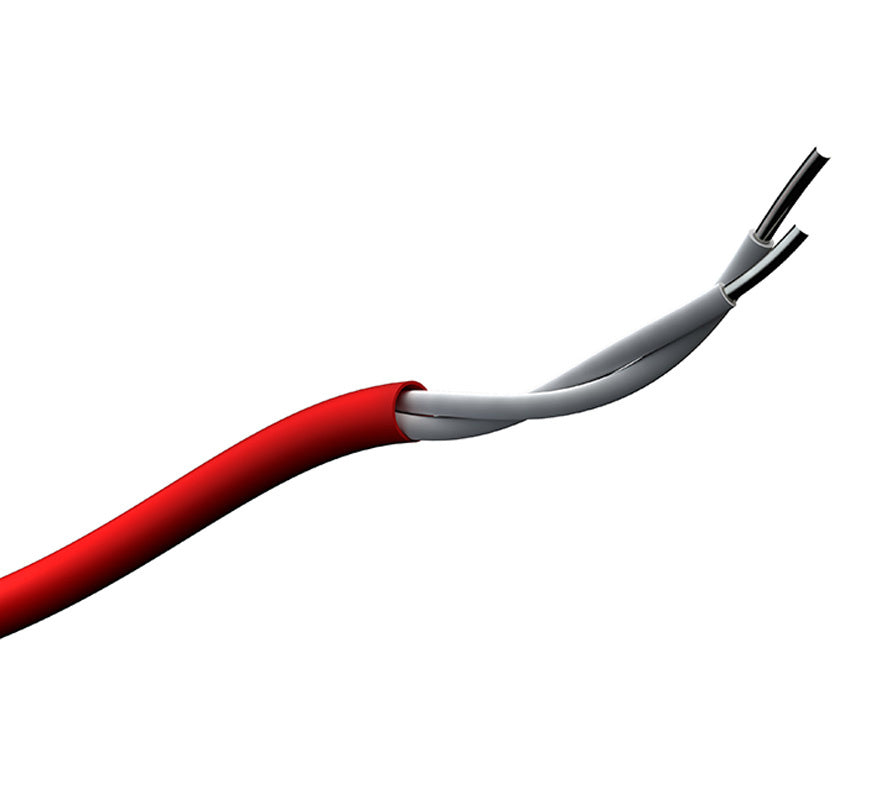

Signaline FT-68 (SL-FT-68) is a fixed temperature linear heat detection cable with a red PVC sheath and a 68°C alarm temperature, approved by UL, cUL and FM Global. It detects a build-up of heat anywhere along its length: when any point reaches the alarm temperature, the heat-sensitive polymer between the two internal cores melts, the cores touch and an alarm is initiated. Sold per metre.
Key features
- Fixed 68°C alarm temperature
- Up to 3,000m per zone
- Works with conventional and addressable fire systems, and in hazardous areas with suitable interfaces
- Exact alarm location and easy testing when used with the Signaline LocatorPlus and FT-EOL
- Multiple fixing options and accessories available
- PVC sheath for general use (the FT-R range has a nylon coating for harsh environments)
- Made in the UK
Technical specifications
-
Model: Signaline FT-68
-
Alarm temperature: 68°C (155°F)
-
Max. ambient temperature: 45°C (113°F)
-
Conductor resistance: 0.1Ω/m at 20°C
-
Max. voltage: 42V DC or 30V AC
-
Dielectric withstand (UL): 500V DC
-
Tensile strength: 1700N/mm²
-
Minimum bend radius: 75mm
-
Overall diameter: 3.5mm
-
Weight: 13kg per 500m
-
Outer sheath: PVC, red
-
Approvals: FM, UL, cUL, KFI
