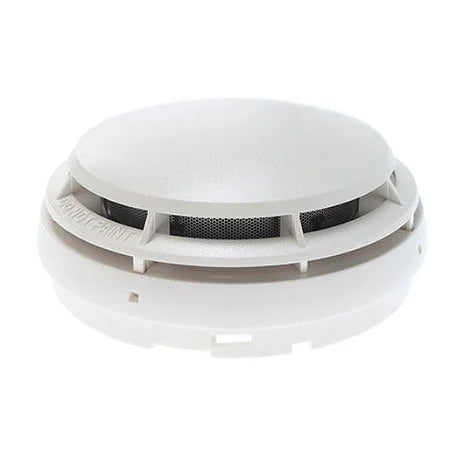

The Simplex 4098-9714 is a white TrueAlarm analog addressable photoelectric smoke sensor. It fits TrueAlarm sensor bases and communicates with Simplex fire alarm control units over IDNet or MAPNET II two-wire addressable communications, with the panel analysing each sensor’s data to determine alarms.
Key features
- Photoelectric sensing with a stable pulsed LED light source and silicon photodiode receiver, for low-power smoke detection
- 360° smoke entry for response from any direction; louvered design directs smoke to the chamber
- Built-in insect screens, sealed against rear air flow entry, EMI/RFI shielded electronics
- TrueAlarm analog sensing: sensor values are digitally transmitted to the panel, which averages them and compares present readings to decide on alarm or trouble
- Automatic environmental compensation for dust, dirt and ageing, reducing nuisance alarms
- Panel-selectable sensitivity, timed (e.g. day/night) sensitivity and multi-stage alarm operation
- Peak value logging and automatic sensitivity monitoring to meet NFPA 72 testing requirements
- Magnetic functional testing
- Ceiling or wall mounting in any TrueAlarm base, such as the 4098-9792 standard base
- Listed to UL 268 7th Edition and ULC-S529
Technical specifications
-
Part number: 4098-9714 (white)
-
Sensitivity: Panel-selectable 1.25% to 3.1% per foot; special application settings 0.2%, 0.5% and 1% per foot
-
Communications: IDNet or MAPNET II, auto-selected, one address per base
-
Air velocity rating: 0 to 1220m/min (0 to 4000ft/min)
-
Operating temperature: -9°C to 50°C
-
Storage temperature: -18°C to 60°C
-
Humidity: 10% to 95% RH
-
Housing colour: Frost white
-
Rating: NEMA 1
-
Compatible bases: 4098-9792, 4098-9789, 4098-9791, 4098-9780, 4098-9775, 4098-9776
-
Compatibility: Simplex 4007ES, 4010, 4010ES, 4100ES and 4100U fire alarm control units (and 4008 series with reduced features) on IDNet, or 4020, 4100 and 4120 series, Universal Transponders and 2120 TrueAlarm CDTs on MAPNET II
-
Listings: UL 268 7th Edition, ULC-S529
