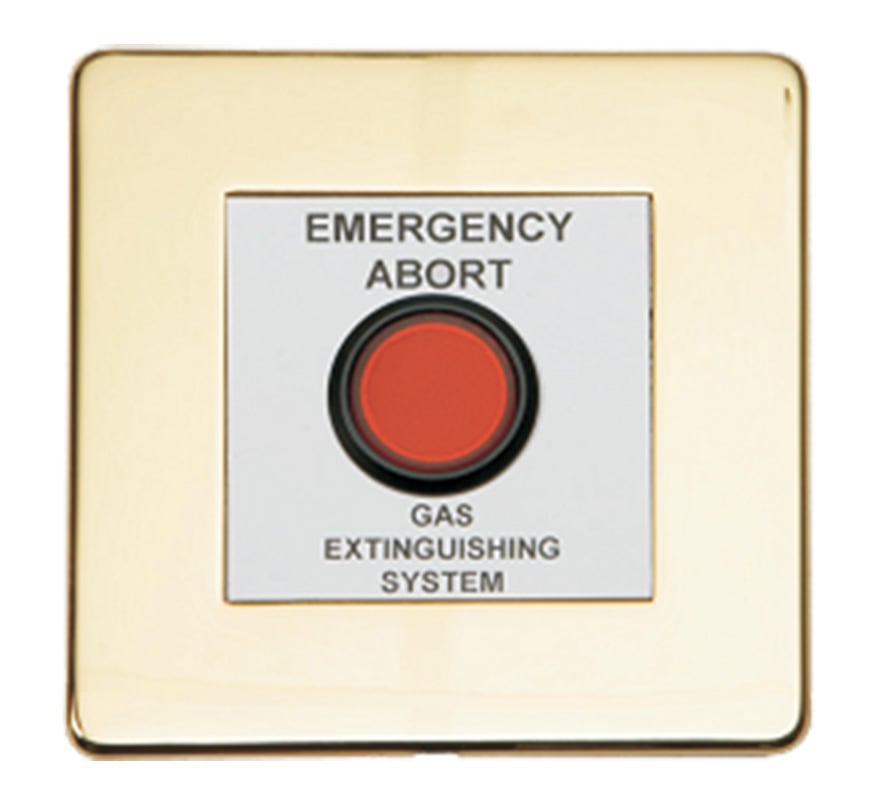

The Advanced EXP-004-003 is an abort switch module with a brass trim cover plate, designed to complement Advanced ExGo extinguishing and suppression control panels. It is compatible with ExGo gas extinguishing panel and remote status indicator panel input circuits, and complies with the requirements of BS 7273-1.
The switches are easy to wire and multiple units can be daisy-chained on a single input circuit. It can be surface mounted or semi-flush mounted onto a standard 3½" electrical box. An end-of-line resistor is supplied with every unit.
Key features
- Abort switch for ExGo extinguishing systems
- Brass trim cover plate
- Surface or semi-flush mounting
- Multiple units can be daisy-chained on one input circuit
- Compatible with ExGo gas extinguishing panel and remote status indicator panel input circuits
- Complies with BS 7273-1 requirements
- Supplied with an end-of-line resistor
Technical specifications
-
Part number: EXP-004-003
-
Type: Abort switch, brass trim cover plate
-
Dimensions (metal trim unit): 87mm x 87mm x 47mm overall; back box 87mm x 87mm x 44mm
-
Minimum depth behind cover: 35mm
-
Environmental class: Indoor, 0°C to 40°C
-
Humidity: 95% max
-
End-of-line resistance: 6800 ohms
-
SW#1 active resistance: 470 ohms
-
Maximum operating voltage: 30V DC
-
Standard: Complies with BS 7273-1 requirements
