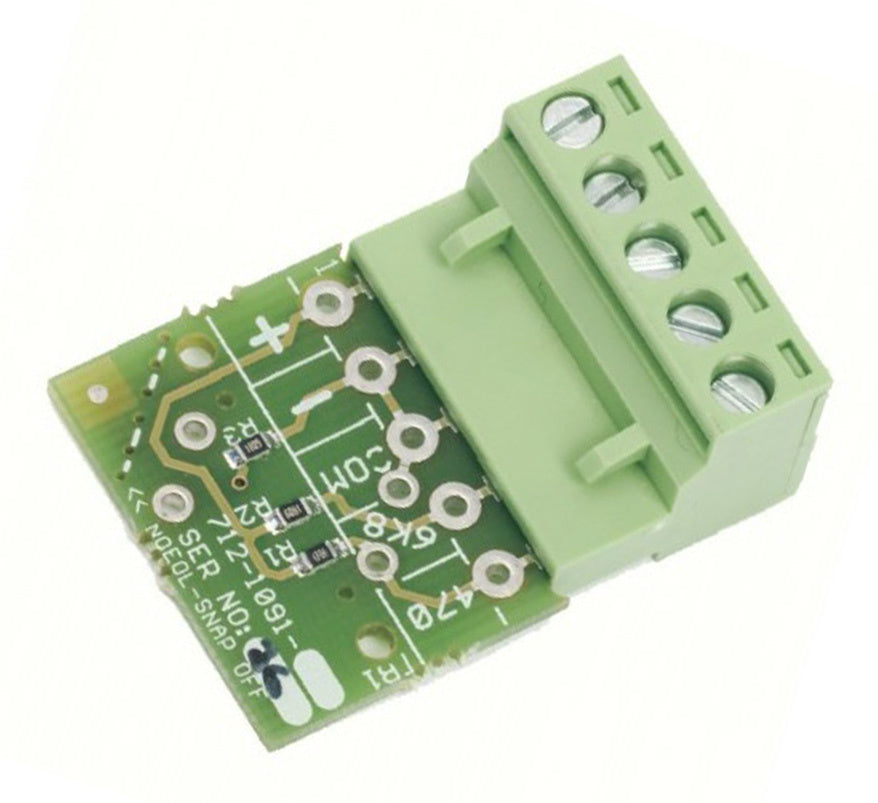

The Advanced EXP-006 is a pack of five Zone Active End-of-Line Modules for the ExGo gas extinguishing panel. Each module provides active end-of-line monitoring for zone circuits fitted with detector diode bases, in accordance with BS 5839-1 Clause 12.2.2f.
It replaces the normal 6,800Ω end-of-line resistor supplied with the panel, and creates an open-circuit condition at the panel if a detector is removed from its base.
Key features
- Pack of 5 modules
- Active end-of-line monitoring for zone circuits with detector diode bases
- Signals an open-circuit condition if a detector is removed
- Compatible with ExGo series gas extinguishing panel input circuits
- For gas extinguishing installations where an EOL module is required
Technical specifications
-
Pack quantity: 5
-
End-of-line resistance: 6,800Ω
-
Operating voltage: 17-30V DC
-
Zone voltage: 20V DC typical
-
Current consumption (fault condition): 40µA typical
-
Environment: Indoor, -5°C to +40°C
-
Humidity: 95% max
-
Dimensions (H x W x D): 27 x 20 x 7mm max overall
