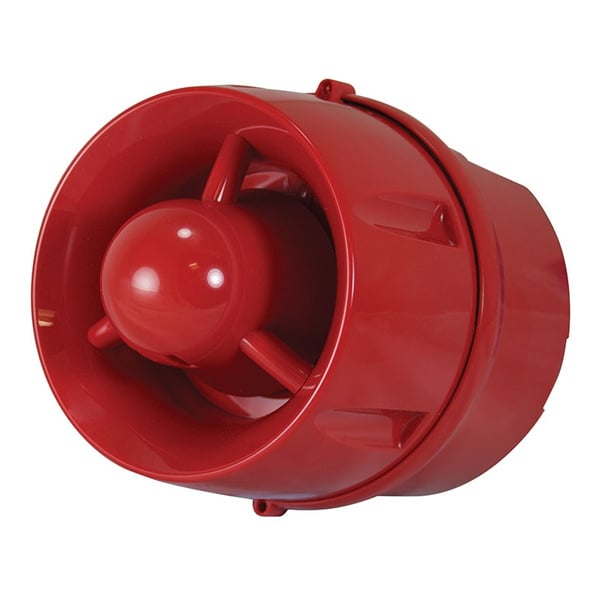

The C-TEC BF430C/CC/DR/65 is an ActiV conventional hi-output wall sounder on a deep base, weatherproof to IP55C. It is certified to EN54-3 and gives up to 100dB(A) at 1m. It works with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels and virtually all other makes of conventional panel (C-TEC recommends testing on third-party panels before use).
Key features
- 100dB(A) sound output at 1m
- 31 selectable primary tones plus an optional secondary tone
- Two volume levels (high and low)
- Low alarm current: 5.5mA at 30V DC
- IP55C weatherproof rating for wall mounting
- Manufactured in the UK by C-TEC
Technical specifications
- Approvals: certified to EN54-3 by the LPCB and VdS
- Supply voltage: 18 to 30V DC
- Nominal sound output: 100dB(A)
- Alarm current: 5.5mA at 30V DC; 3.8mA at 18V DC
- Dimensions: 114mm diameter x 132mm deep
- IP rating: IP55C (weatherproof)
- Weight: 315g
- Operating temperature: -10°C to +55°C, max 95% RH (non-condensing)
