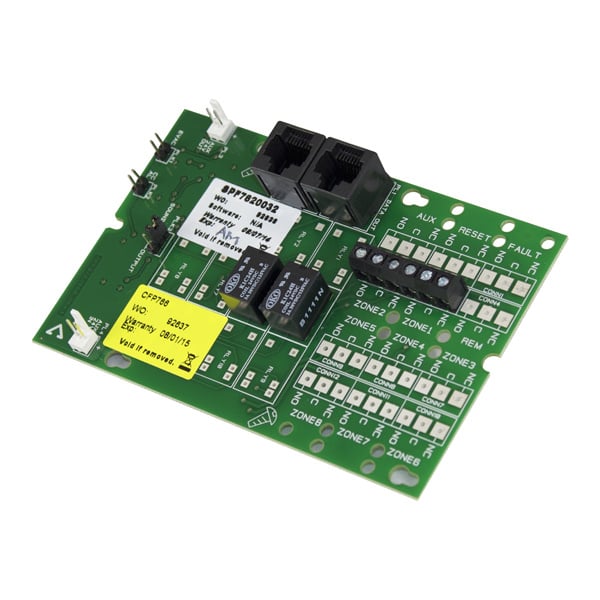

The C-TEC CFP766 is an optional relay output card for C-TEC's 2 zone CFP conventional fire alarm panels: the CFP702-4 Standard and the CFP702-2 AlarmSense. It provides two per-zone relay outputs that change over when the matching zone is in alarm.
Key features
- Two output-per-zone relays that change over when the corresponding zone is in alarm (subject to conditions set out in the manufacturer's instructions)
- PCB mounts inside the CFP fire panel
- For use with CFP702-4 Standard and CFP702-2 AlarmSense 2 zone panels
- Outputs are not designed to switch mains voltages
Technical specifications
- Order code: CFP766
- Contacts: single pole changeover, rated 1A at 50V
- Isolation: 50V between relays, contacts and the CFP panel
- Relay coil current: 27mA per active relay @ 27.6V
- Dimensions: 82 W x 125 H x 23 D mm
- Weight: 52g
