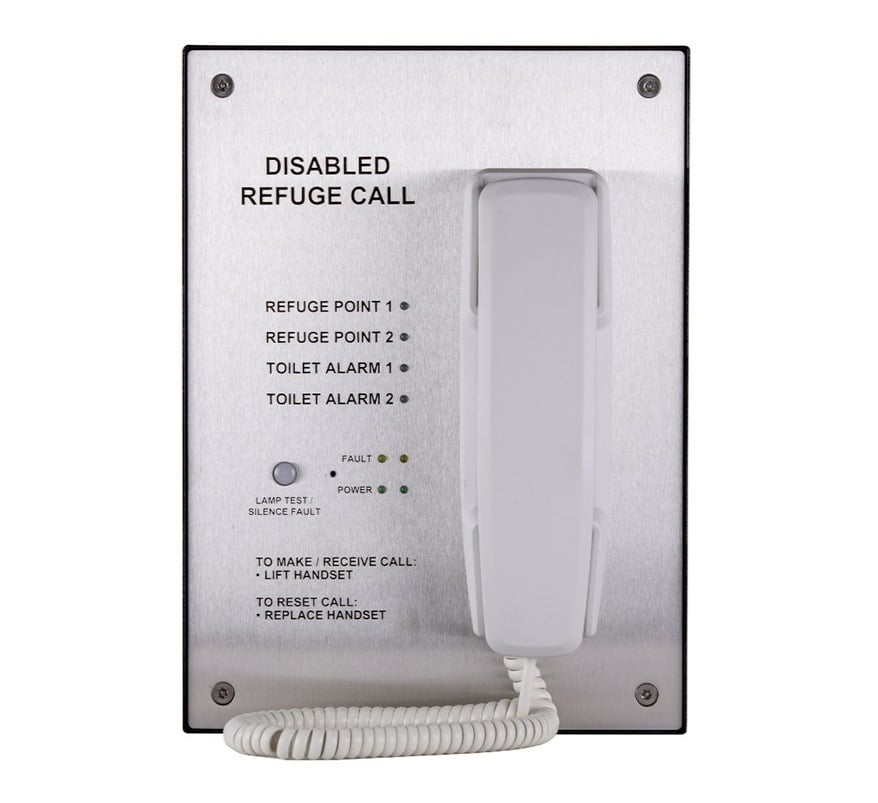

The Cameo Orbital RS2-TA (ORB/R/RS2S/TA) is a 2-line, radially wired master control panel for a combined disabled refuge and disabled toilet alarm system, fully compliant with BS 5839 Part 9. The surface unit has a black leatherette (RAL 9005) mild steel back box with a stainless steel front panel and black screen print. Toilet alarm signals from a nearby disabled toilet PSU/sounder unit are wired over a simple two-core cable to the local refuge outstation and shown on the master panel.
Key features
- Two-way combined disabled refuge and disabled toilet alarm system
- Master handset answers or calls out to each refuge location using separate call switches
- Clear, full-duplex audio conversation; call ended by replacing the master handset
- Two individual blue toilet alarm LED indicators on the master panel
- Refuge outstations radially wired in 2-core 1.5mm enhanced fire-rated cable
- Volt-free changeover contact for remote call-in, toilet alarm and fault reporting
- Fire panel inhibit input fitted as standard
- Batteries included, giving 24 + 3 hours of standby support
Technical specifications
- Manufacturer code: ORB-R-RS2-S-TA
- Lines: 2 disabled refuge outstations
- Wiring: radial, 2-core 1.5mm enhanced fire-rated cable
- Mounting: surface
- Dimensions: 312mm (H) x 229mm (W) x 90mm (D)
- Mains supply: 220-240V AC (5A lighting-rated supply)
- Battery support: 24 + 3 hours
- Compliance: BS 5839 Part 9, CE
