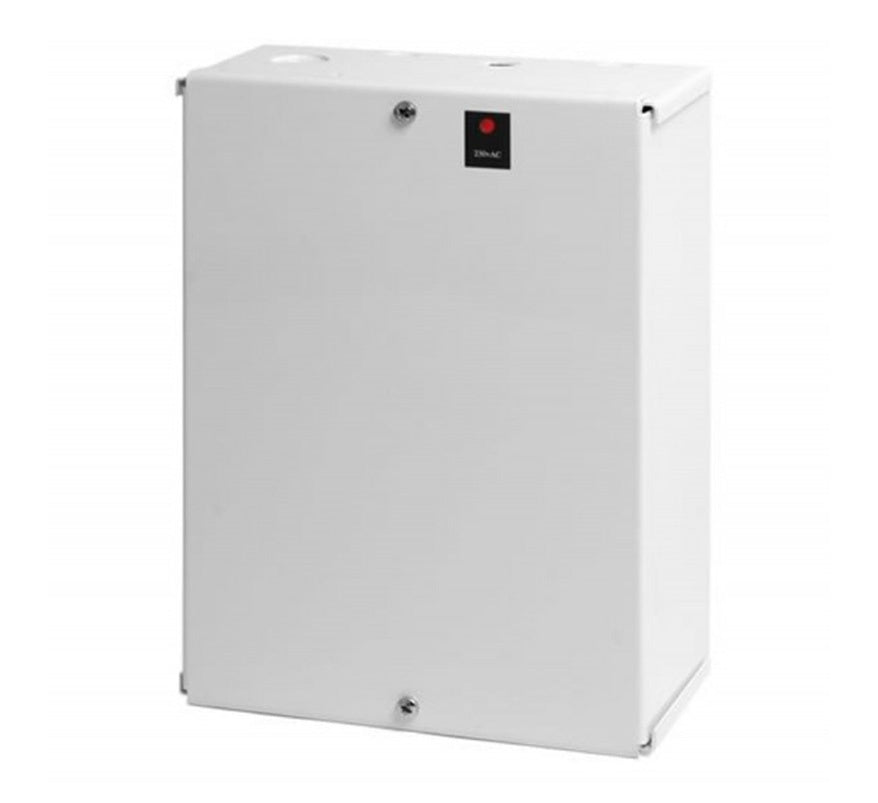

The Dycon D2403-A is a 24V DC 3A switched-mode power supply in a compact A-box housing, designed for powering magnetic fire door retainers and door releases, as well as access control and general 24V DC applications. Its output is designed for highly inductive loads such as door retainers, eliminating the need for additional control relays and reducing the risk of electrical spikes. A normally closed volt-free opto-relay output lets the unit signal its status to a fire alarm panel or other signalling device. Designed and manufactured in the UK by Dycon Power Solutions.
Key features
- 24V DC nominal output, 3A
- Output designed for highly inductive loads such as magnetic door retainers and releases
- Normally closed (NC) volt-free opto-relay output for remote fault signalling
- AC status LED
- Intelligent electronic fuses with automatic reset to reduce system downtime
- Anti-surge protection, intelligent capacitive load switching and snubbing
Technical specifications
- Part number: D2403-A
- Classification: Type A, ungraded, environmental class 2
- Input voltage: 195-265V AC, 50-60Hz
- AC input fuse: T3.15A (non-replaceable)
- Output voltage: 24V DC nominal
- Maximum output current: 3A at full load
- Output ripple: less than 100mV peak-to-peak at full rated output
- AC fault indication: input below 175V AC ±25V
- Fault opto-relay rating: 60V at 100mA, contact resistance 16 ohms
- Automatic output reset time: 10ms to 18s (depending on fault)
- Operating temperature: -10°C to +50°C
- Humidity: 95% non-condensing
- Housing: A-box, 235 x 170 x 85 mm (H x W x D)
- Weight: 1.10 kg
