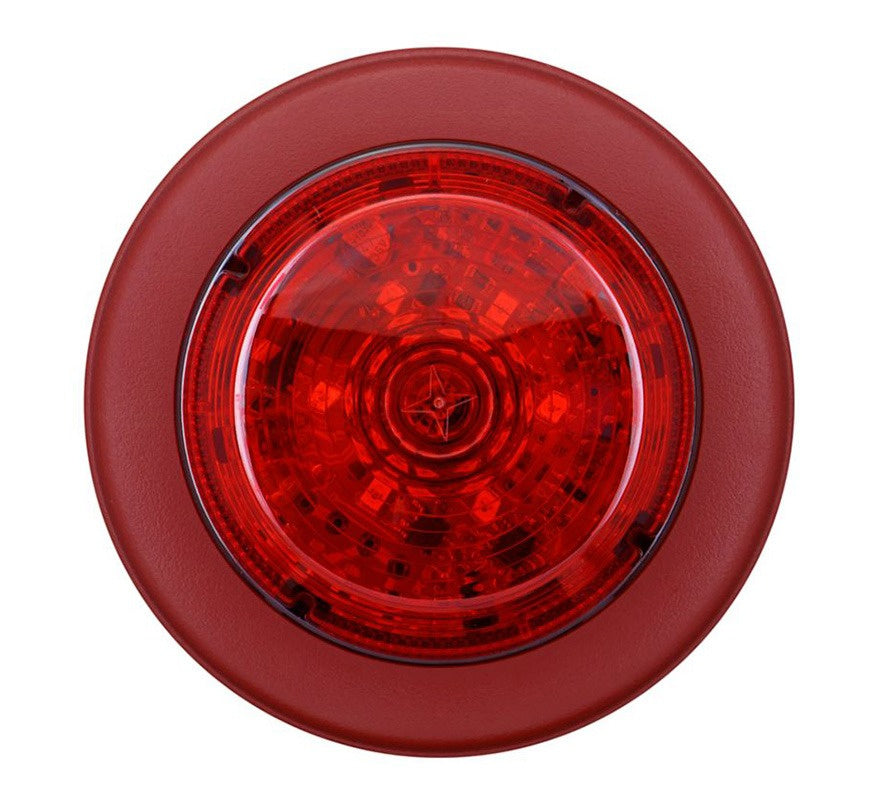

The Eaton Cooper CAB382 is an intelligent addressable, loop-connected LED staff warning device for Eaton intelligent addressable fire alarm systems. It complements audible alarms in areas where people may have impaired hearing or where ambient noise is high, and can be mounted on a wall or ceiling.
Note: Eaton's catalogue lists the CAB382 as a staff warning device and states that it does not meet EN 54-23 as a beacon, so it is recommended as an internal warning device (for example in offices, schools or manned reception areas). Use an EN 54-23 certified VAD where one is required.
Key features
- Loop powered and soft addressed
- Integral short-circuit isolator
- High-output LED with low current consumption
- Low-profile design for discreet installation
- First-fix back box; beacon body twists and locks into the base
- Wall or ceiling mounting
Technical specifications
- Part number: CAB382
- Operating voltage: 17 to 32 V DC
- Standby current: less than 250 µA
- Alarm current: less than 4.1 mA
- Flash frequency: 0.5 Hz
- Operating temperature: −10°C to +55°C
- Humidity: 0 to 95% RH (non-condensing)
- Construction: PC/ABS, red
- Lens colour: red
- Dimensions: 93 mm diameter x 53 mm deep
- Weight: 0.15 kg
- Ingress protection: IP54
- Cable entry: rear
- Compatible with: Eaton intelligent addressable fire systems
