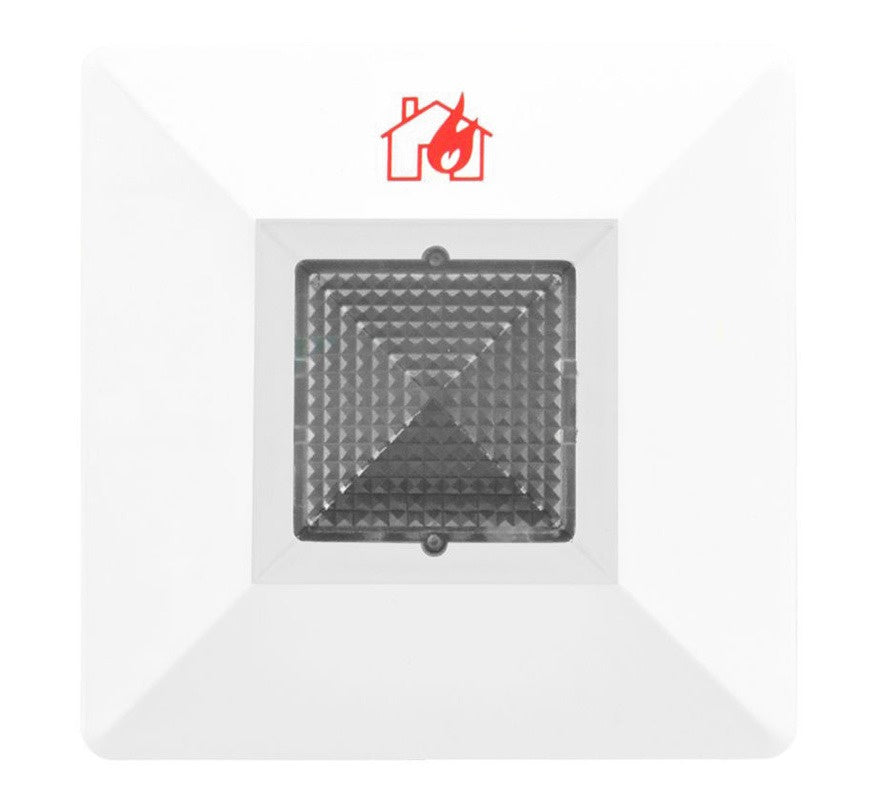

The Eaton Cooper MRIAD is an intelligent addressable, loop-connected remote indicator for Eaton intelligent addressable fire alarm systems. It gives discreet remote indication controlled by the fire panel, and a single indicator can monitor several detectors in an area, which reduces wiring.
It connects directly to the loop, is soft addressed by the panel at start-up and has integral short-circuit isolators. In Site Installer it is programmed as an address output (sounder), so it can be driven by the cause and effect tables: continuous or pulsing, by global, panel, zone or address, or on a double-knock input. It is an indicator only, not a visual alarm device.
Key features
- Loop powered and soft addressed, single address
- Integral short-circuit isolator
- High-visibility LED with a wide viewing angle
- Can be programmed to monitor multiple remote sensors
- Activated by cause and effect programming; LED cancels when the detector is reset
- Fits a standard single-gang back box, or fixes directly to a wall or ceiling
- Plug-in terminal block for easier connection
Technical specifications
- Part number: MRIAD
- Operating voltage: 24 V DC
- Quiescent current: 220 µA
- Alarm current: 6 mA
- Cable size: 0.5 to 2.5 mm²
- Operating temperature: −10°C to +55°C
- Humidity: 0 to 95% RH (non-condensing)
- Construction: ABS, white
- Lens colour: red
- Dimensions (H x W x D): 87 x 87 x 49 mm
- Weight: 0.28 kg
- Ingress protection: IP30
- Compatible with: Eaton intelligent addressable fire systems
