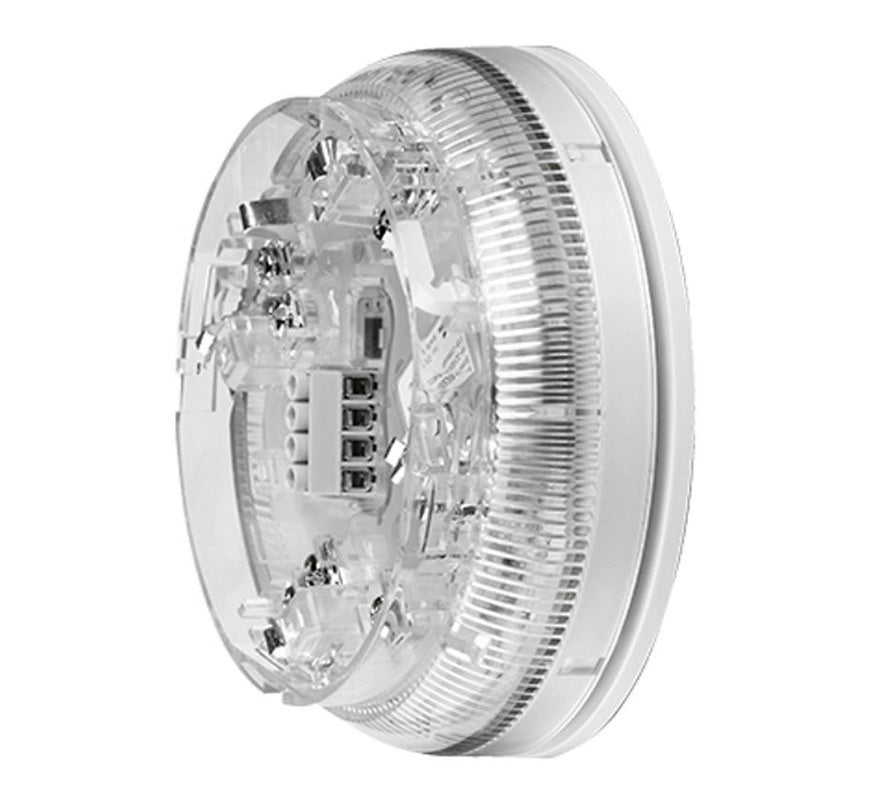

The Eaton Cooper CASBB394 is an EN 54-23 certified visual alarm device (VAD) sounder beacon base for Eaton intelligent addressable fire alarm systems. It fits under an Eaton intelligent addressable detector to add a sounder and VAD at the detector position.
Fitted with Eaton's CASC cover plate (sold in packs of 5) instead of a detector, it can also be used as a dedicated, discreet standalone sounder VAD. Eaton's catalogue number for the CASBB394 is 666129FULL-0198X.
Key features
- EN 54-23 certified VAD sounder beacon base
- Compatible with the Eaton range of intelligent addressable detectors
- Can be used as a standalone device with the CASC cover plate
- Three volume settings
- Low-current 0.5 Hz flash
Technical specifications
- Part number: CASBB394 (Eaton catalogue no. 666129FULL-0198X)
- Sound output: 83 dB at less than 8.6 mA (low), 90 dB at less than 10 mA (medium), 93 dB at less than 11 mA (high)
- Flash rate: 0.5 Hz
- Dimensions: 115 mm diameter x 44 mm deep
- Compatible with: Eaton intelligent addressable detectors and fire systems
