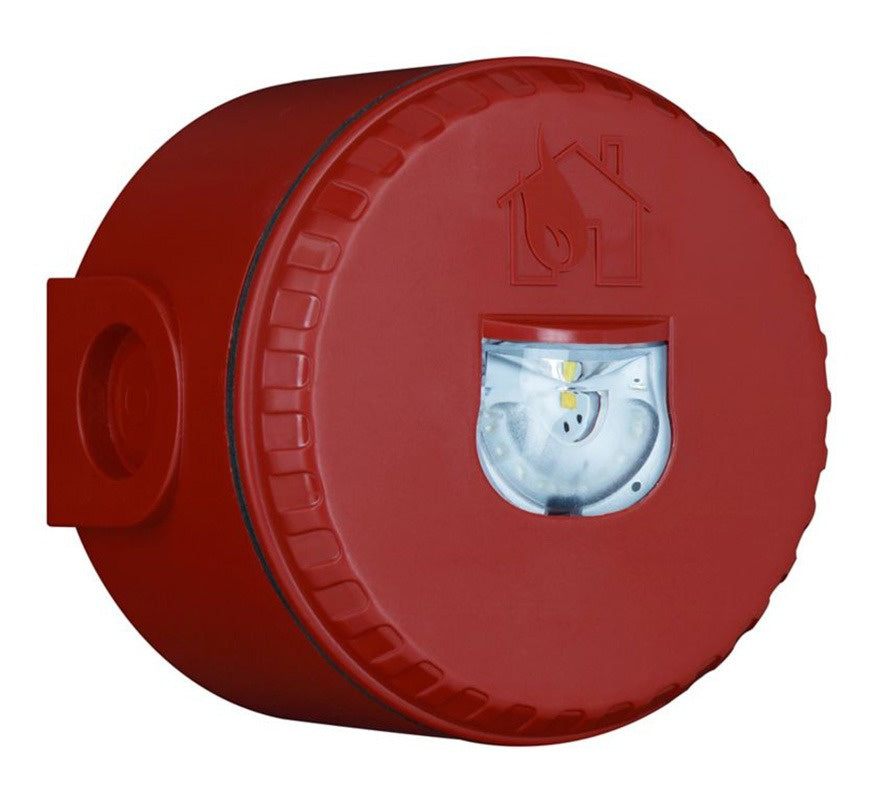

The Eaton Cooper CAB482WD is an intelligent addressable wall-mounted visual alarm device (VAD) with a red body and red LED flash, supplied with a deep base. It is certified to EN 54-23 and gives a low-profile, low-current visual fire warning on Eaton intelligent addressable fire alarm systems.
It uses Eaton's patented lens design to distribute light efficiently, and its discreet appearance suits public areas.
Key features
- Compliant with EN 54-23
- Ultra-low current consumption
- Coverage switch: 7.5 m or 2.5 m
- Flash rate switch from 1 Hz to 0.5 Hz reduces power consumption by up to 50%
- Patented lens design for efficient light distribution
- Deep base, IP65
Technical specifications
- Part number: CAB482WD (Eaton catalogue no. 812036FULL-0212X)
- Mounting: wall
- Voltage: 19 to 30 V
- Standby current: less than 330 μA
- Operating current: 12.5 to 45 mA (depending on setting and LED colour)
- Mounting height: 2.4 m
- Coverage: 7.5 m (switchable to 2.48 m)
- Coverage volume code: W-2.4-7.5
- Flash rate: 0.5 Hz (switchable to 1 Hz)
- Flash colour: red
- Ingress protection: IP65 (deep base)
- Operating temperature: −10°C to +55°C (Type A); −25°C to +70°C (Type B)
- Dimensions (H x W x D): 93 x 93 x 67 mm
