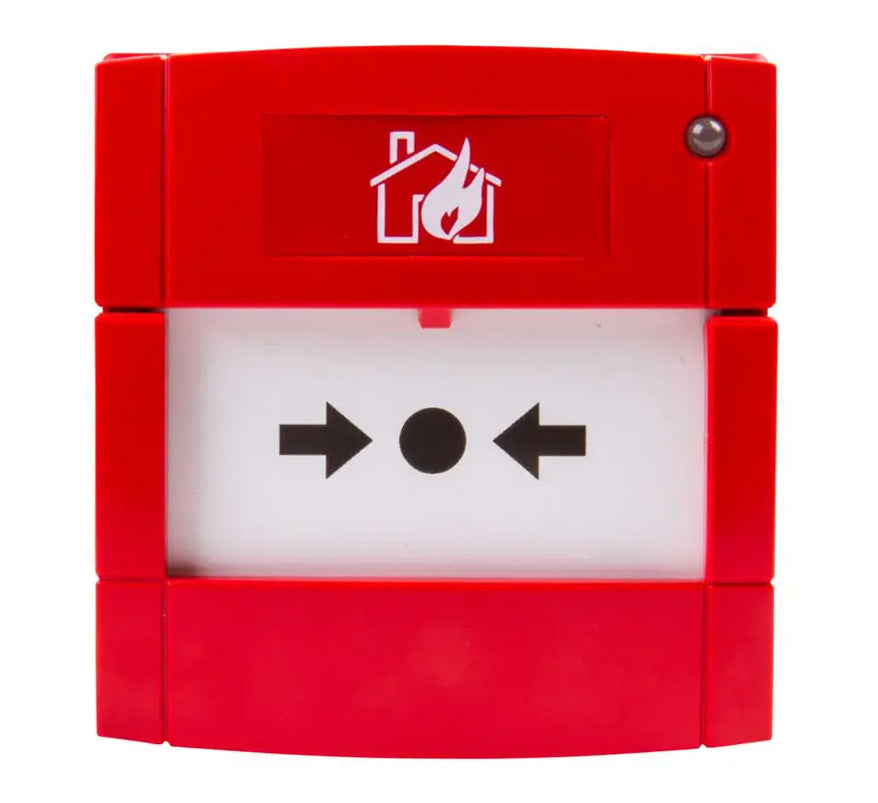

The Electro Detectors Zerio Plus EDA-C5000 is a radio (wireless) manual call point / break glass unit for the Zerio Plus wireless fire alarm system. It is supplied complete with call point, mounting box and battery, and needs just two screws to mount on the wall.
Zerio Plus is Electro Detectors' EN 54 certified radio (wireless) fire alarm system, designed and manufactured in Harlow, Essex. It supports up to 240 fully addressable devices per system.
Key features
- Fully addressable
- Up to 5 year battery life
- Continual monitoring and self-testing
- Unique serial number and time in service stored in non-volatile memory
- Keyswitch, IP65 and remote antenna versions available separately
Technical specifications
-
Part number: EDA-C5000
-
Radio: 868MHz narrow band FM, 13 channels
-
Power source: 1 x EDA-Q690 dual lithium battery pack
-
Battery life: Up to 5 years
-
Width: 90mm
-
Depth: 53mm
-
Weight: Approx. 200g
-
Finish: Red
-
Operating temperature: 0°C to +60°C
-
Humidity: 0 to 95%, non-condensing
-
Standards: EN 54-25; complies with the relevant sections of BS 5839 and EN 54
What's in the box
- Call point
- Mounting box
- Battery pack
