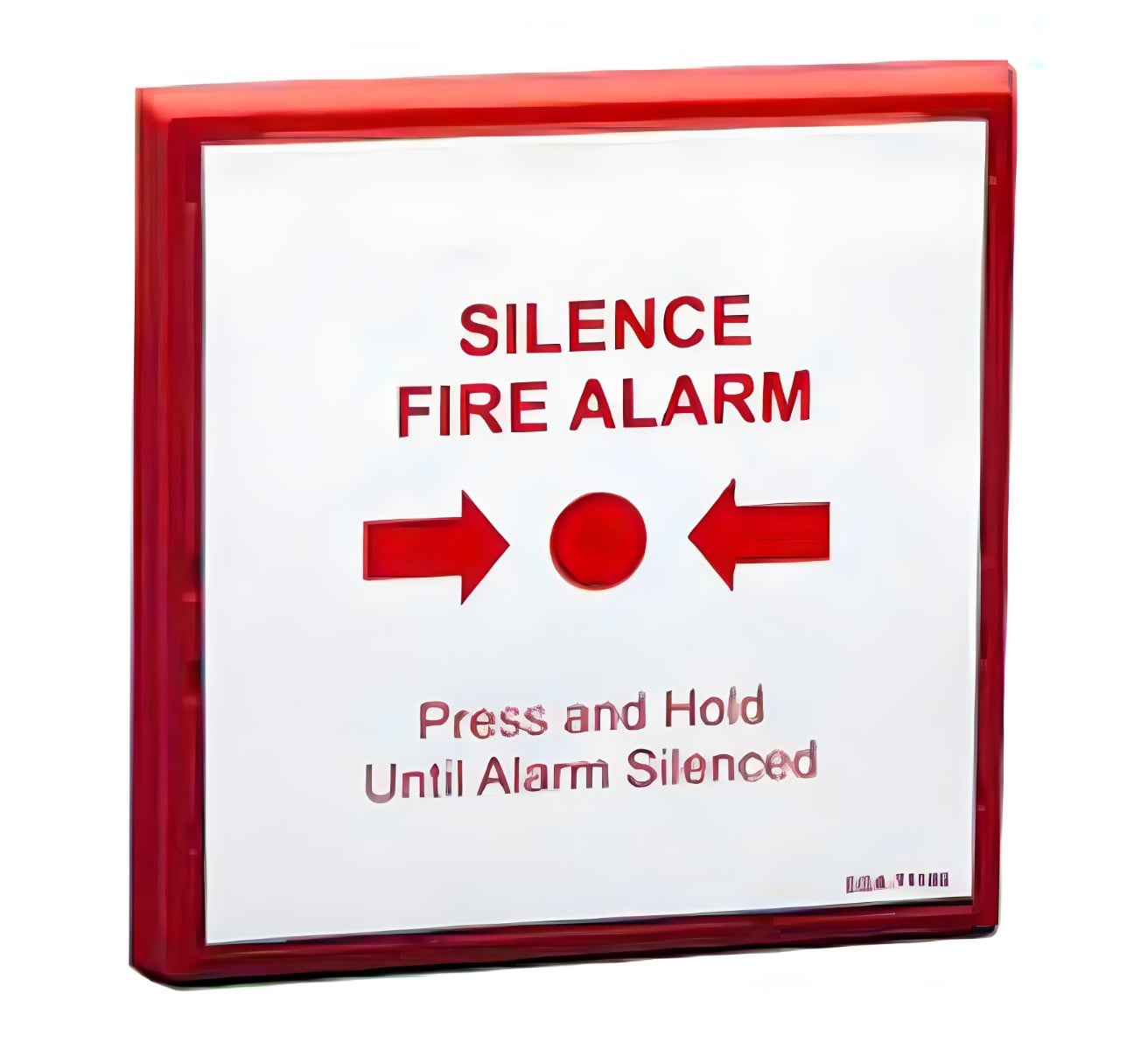

The Electro Detectors EDA-T5100 is a radio alarm silence button for the Zerio Plus wireless fire alarm system. Usually fitted in individual flats and used with the panel's HMO mode, it lets a resident silence a local alarm they have caused, with the flat's devices then isolated for a set time while the smoke clears. It is certified to EN 54-25.
Key features
- Silences the system remotely from inside the flat
- Designed for the Zerio Plus HMO programming mode
- EN 54-25, fully addressable radio device
- Up to 7 years battery life
- Small, compact design
- Compatible with Zerio Plus panels
Technical specifications
- Part number: EDA-T5100
- Power source: dual lithium cells (2 x AA lithium)
- Battery life: up to 7 years
- Battery pack: 1 x EDA-Q690
- Transmitter frequency: 868MHz, narrow band FM, 13 channels
- Temperature range: 0 to +60°C
- Humidity: 0 to 95% (no condensation)
- Casing: UV-stabilised ABS, red
- Dimensions: 90 x 90 x 20mm (including base)
- Weight: approx. 175g (including base)
- Fixing: 2 x 4mm (No. 6) screws, 60mm centres
