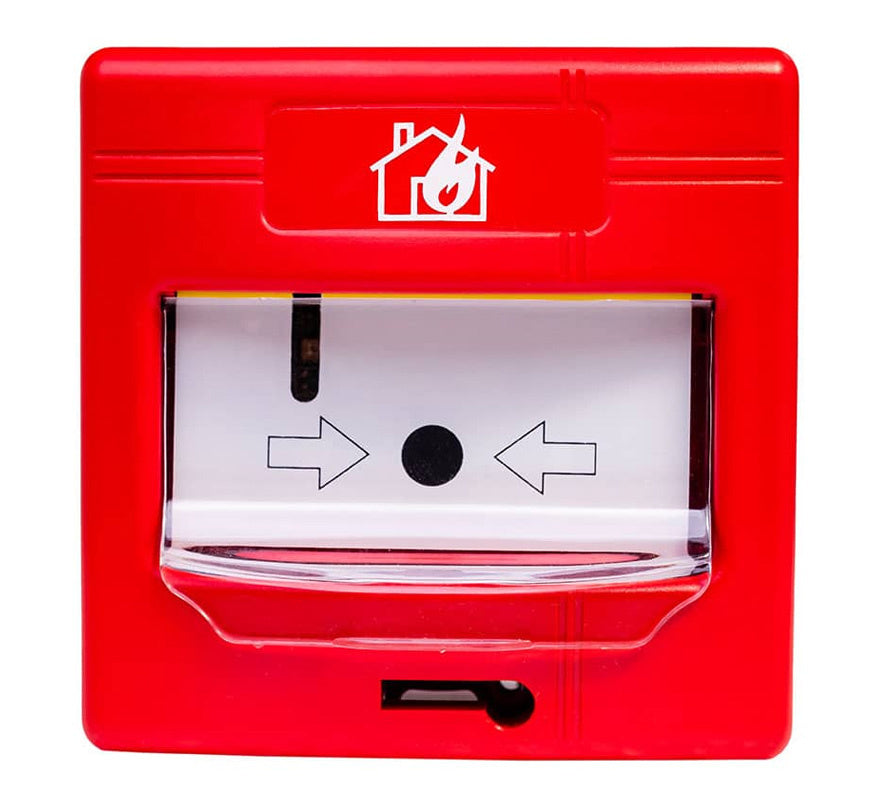

The Global Fire GFE-MCPE-C is a red conventional manual call point, designed and manufactured to EN54-11 and compatible with all Global Fire Equipment (GFE) conventional control panels. It comes with a hinged protective flap and can be surface or flush mounted.
Key features
- Conventional manual call point to EN54-11 (certificate 1328-CPR-0377)
- Hinged protective flap: two actions are needed to activate, reducing accidental and malicious activations
- Bi-colour LED: flashes green in normal operation, lit red in alarm
- Resettable element, reset with the supplied key after activation
- Surface or flush mounting
Technical specifications
- Operating voltage: 25V DC (+5/-15V)
- Quiescent current: 200µA
- Alarm current: 50mA @ 24V DC nominal (alarm resistance 470 ohms max)
- Operating temperature: -10°C to +55°C; storage -30°C to +60°C
- Protection: IP24D, Type A, indoor use
- Max humidity: 95% RH non-condensing @ 40°C
- Cable size: 0.5 to 1.5mm²
- Case material: ABS and clear PC, flame retardant 94 V0; colour red
- Dimensions: surface mounted 92.6 x 92.6 x 60.1mm; flush mounted 92.6 x 92.6 x 27.8mm
- Weight: 152g including back box and fixings
