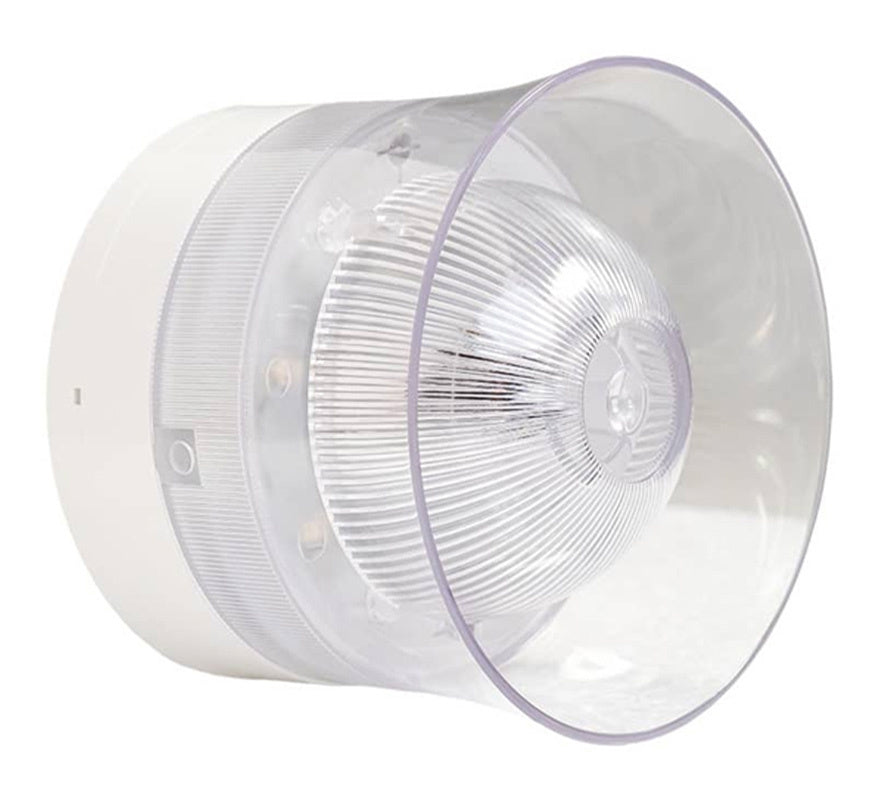

The Global Fire Equipment VALKYRIE CSB is a low-power conventional wall-mounted sounder beacon in white (VALKYRIE-CSB-WHT). It gives an audible and a visual alarm from the sounder circuits of conventional fire alarm panels.
Key features
- Combined sounder and beacon in one wall-mounted unit
- Low power consumption: 10 mA when active
- Four tones, selected with DIL switches 1 and 2
- Separate negative supply connections for continuous and pulsing outputs, so alert and evacuate signals can sound differently
- White finish
Technical specifications
- Supply voltage: 20 V to 30 V DC
- Current (active): 10 mA - 280 mW at 28 V DC
- Maximum sounder output: 97.5 dB at 1 m (30 V DC)
- Cable size: 0.5 to 2.5 mm²
- Reset/start-up time: 20 seconds max.
- Protection: Type A indoor use, IP21C
- Case material: ABS and PC, flame retardant
- Operating temperature: -10°C to 55°C; humidity 95% RH non-condensing
- Dimensions: 110 (D) x 85 (H) mm including base
- Weight: 254 g including base
- Certification: 1328-CPR-0287
