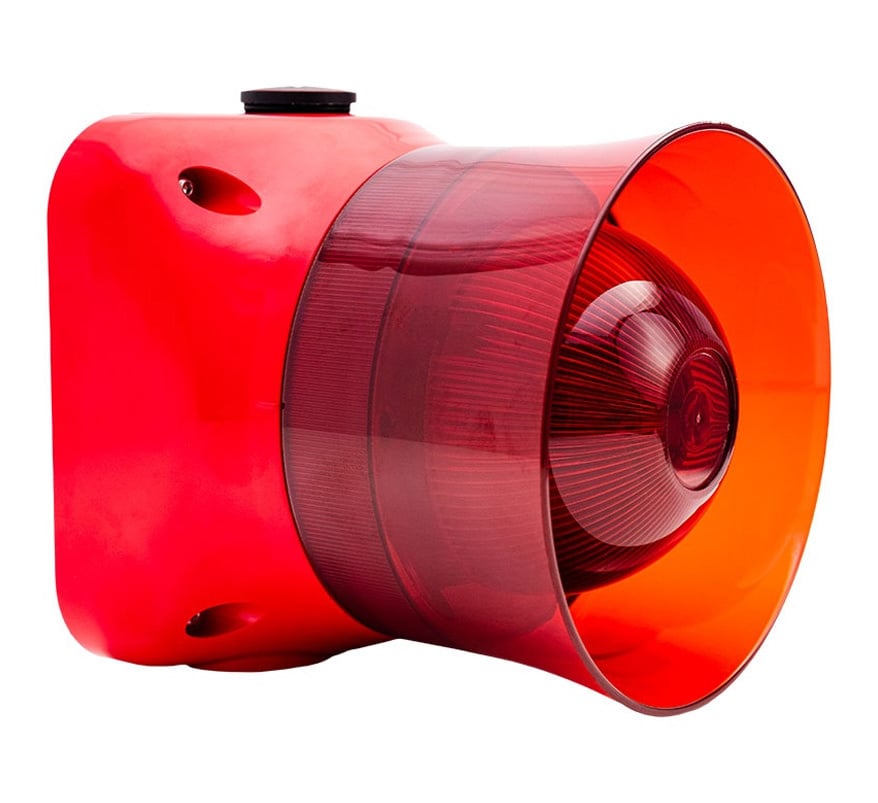

The Global Fire Equipment VALKYRIE CSB IP65 is a low-power conventional wall-mounted sounder beacon in red, designed for outdoor use. It gives an audible and a visual alarm from the sounder circuits of conventional fire alarm panels.
Key features
- Combined sounder and beacon in one weatherproof unit
- Designed for outdoor use: IP65, Type B
- Low power consumption: 10 mA when active
- Four tones, selected with DIL switches 1 and 2
- Separate negative supply connections for continuous and pulsing outputs, so alert and evacuate signals can sound differently
- Red finish
Technical specifications
- Supply voltage: 20 V to 30 V DC
- Current (active): 10 mA - 280 mW at 28 V DC
- Maximum sounder output: 97 dB at 1 m (30 V DC)
- Max. cable size: 2.5 mm²
- Operating temperature: -20°C to 70°C
- Humidity: 95% RH non-condensing
- Case material: ABS and PC
- Colour: red
- Protection: IP65, Type B outdoor use
- Dimensions: 112 (D) x 110 (H) mm including base
- Weight: 315 g
- Certification: 1328-CPR-0300
