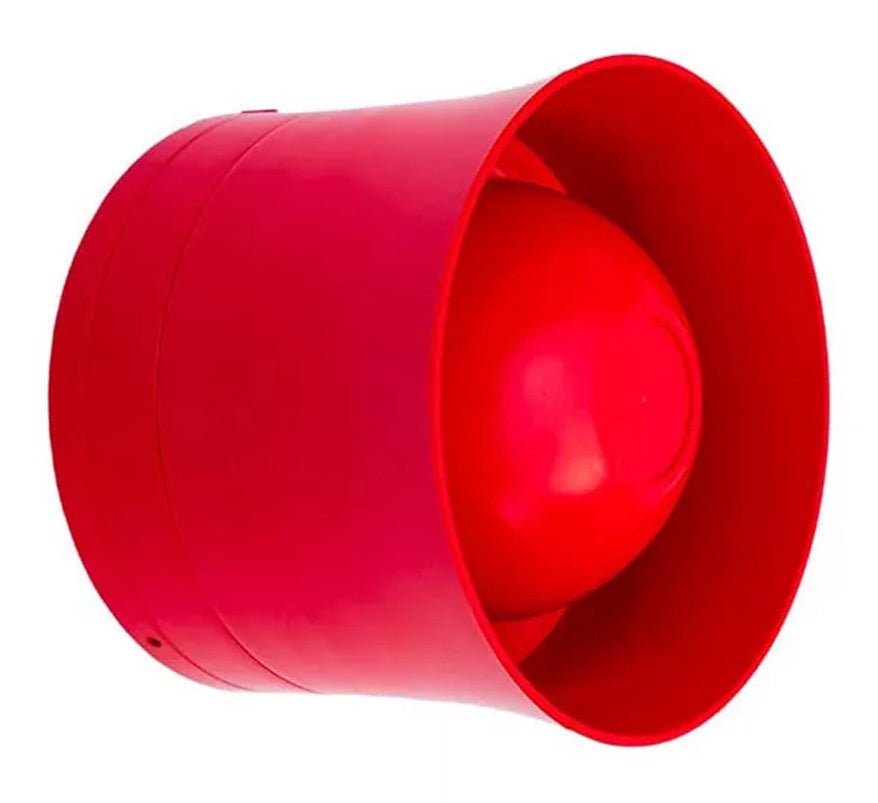

The Global Fire Equipment (GFE) VALKYRIE VOX C is a wall-mounted conventional voice sounder, supplied here in a red housing. It is based on GFE's VALKYRIE horn sounder and broadcasts up to two different pre-loaded messages, Fire and Alert, for use on conventional fire alarm sounder circuits.
Messages can be loaded using GFE's own recording PC application through a standard USB interface, so the sounder can be set up with messages in different languages.
Key features
- Up to 2 pre-loaded messages: Fire and Alert
- Multi-message and multi-language
- 106 dB maximum sounder output at 1 m
- Messages programmed via USB using dedicated software
- Synchronisation for fast activation
- Compatible with most conventional fire panels
- For indoor use
Technical specifications
- Datasheet order code: VALKYRIE VOX C (conventional voice sounder)
- Supply voltage: 20V to 30V DC
- Current (sounder active): 28mA average, 65mA peak at 24V DC
- Sounder output at 1 m: tone 103 dBA; voice message 106 dBA
- Maximum cable size: 2.5mm²
- Colour / case material: red or white / ABS and PC (this listing: red)
- Operating temperature: -10°C to 55°C
- Maximum humidity: 95% RH non-condensing
- Protection: IP21C, Type A, indoor use
- Dimensions: 110mm (D) x 83.6mm (H)
- Weight: 265g; 315g including packaging
