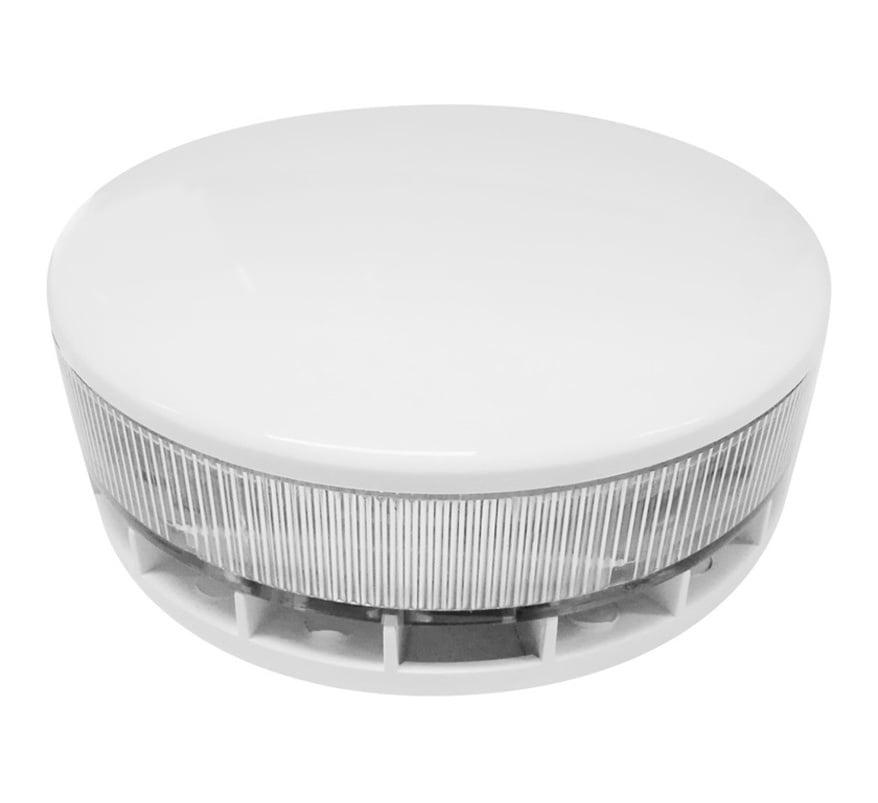

The Global Fire Equipment VULCAN 2 ASBI is an addressable base sounder beacon with a built-in loop isolator. It is a detector base that gives both an audible and a visual alarm, for GFE addressable fire alarm panels such as the G-One, GEKKO and OCTO+.
It can be set up in the field as a shadow device, with no address of its own so more addresses are free for detectors, or as an auxiliary device that shares the address of the detector fitted on it. Addresses are set with DIP switches.
Key features
- Detector base sounder and beacon with built-in loop isolator
- Shadow or auxiliary operating modes, set by jumper
- Four tones: sweeping, alternating high frequency, continuous and alternating low frequency
- Potentiometer to adjust the sound level
- DIP-switch addressing
- Optional lid for use without a detector
Technical specifications
- Quiescent loop current: 550 µA max. (with isolator)
- Alarm current (sounder/beacon with isolator): 3.45 mA for sweeping (800-1000 Hz), continuous (800 Hz) and alternating low (800-1000 Hz) tones; 6.55 mA for alternating high (2.7-3.2 kHz) tone
- Maximum sounder output: 97 dB at 1 m (30 V DC)
- Supply voltage: loop powered, 20 V to 30 V DC
- Cable size: 0.5 to 2.5 mm²
- Reset/start-up time: 20 seconds max.
- Protection: IP21C, Type A indoor use
- Case material: ABS with transparent PC
- Operating temperature: -10°C to 55°C; humidity 95% RH non-condensing
- Dimensions: 110 (D) x 50 (H) mm including base
- Certification: 1328-CPR-0288
