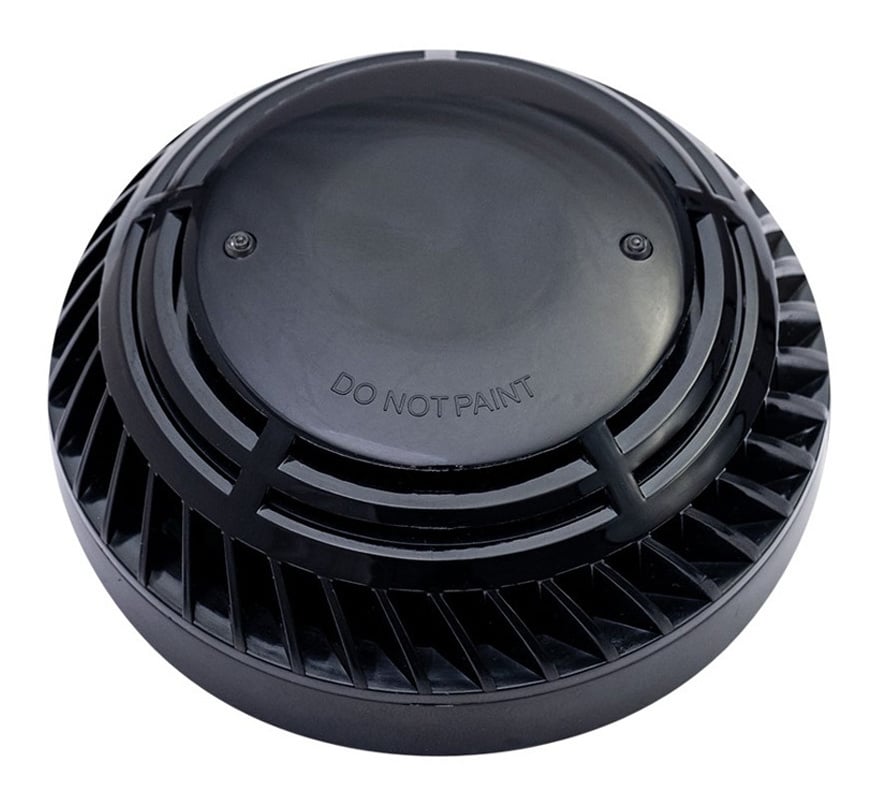

The Global Fire Equipment ZEOS-AD-S is an analogue addressable photoelectric (optical) smoke detector, supplied here in black (ZEOS-AD-SBLK). It is certified to EN 54-7.
The ZEOS-AD series is designed to work fully with GFE addressable fire alarm control panels: JUNIOR, JUNO NET, GEKKO, OCTO+ and G-One.
Key features
- Photoelectric (optical) smoke detection
- Black housing, which GFE lists as an alternative to white
- Smoke sensitivity settings: low, normal (default) and high
- Dual LEDs for 360° visibility
- Advanced detection and communication algorithms
- Low-profile housing with SMD electronics
Technical specifications
- Supply voltage: loop powered, 17 to 30 V DC
- Quiescent/surge current: 450 µA max.
- Alarm current: 4 mA (alarm LED lit)
- Cable size: 0.5 to 2.5 mm²
- Reset/start-up time: 20 seconds max.
- Ingress protection: IP20; case material ABS
- Operating temperature: 0°C to 50°C normal; -10°C to 85°C transient
- Humidity: 95% RH non-condensing
- Dimensions: 100 (D) x 50 (H) mm with base
- Weight: 92 g without base, 144 g with base
- Certification: EN 54-7 (ZEOS-AD-S 1328-CPR-0521)
