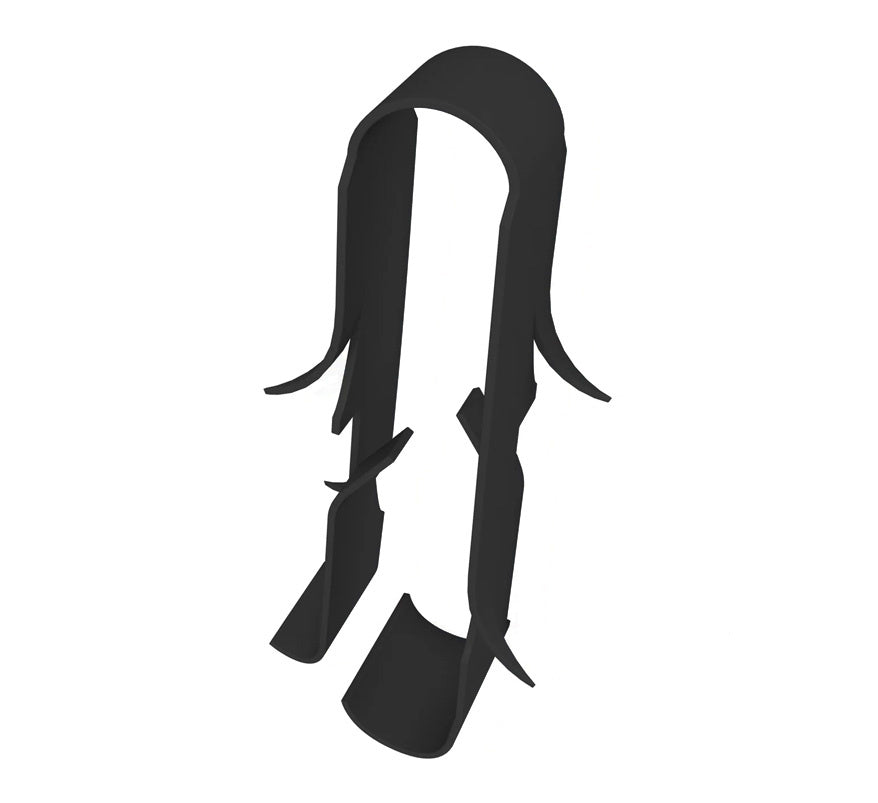

The LINIAN NanoClip™ 2mm in black (1LCB002) is a fire-safe, 18th Edition compliant push-in clip for 2mm fibre optic cables and other small-diameter cables, such as hearing loop, small signal, CCTV and alarm cables. It suits domestic, commercial and industrial installations.
Insert the cable into the open side of the clip and push the clip into a pre-drilled hole: no plugs, screws or washers are needed. Supplied in a pack of 100.
Key features
- 18th Edition (BS 7671) compliant, fire-rated cable fixing
- Fire resistant to more than 1200 °C
- BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
- Corrosion resistant and UV stable
- Single-component design: no plugs, screws or washers needed
- CE and CA certified; made in Britain
- Designed for fibre optic, hearing loop, small signal, CCTV and alarm cables
- Salt-spray tested for more than 1000 hours; suitable for indoor and outdoor use
- Smoke emission tested to the London Underground standard
Technical specifications
- Part number: 1LCB002
- Cable size: 2mm
- Cable type: single
- Colour: black
- Recommended spacing: 300 mm
- Hole diameter: 3 mm for softer substrates (plaster, plasterboard) or 3.5 to 4.5 mm for harder substrates (concrete, masonry, timber)
- Maximum tensile load: up to 3.7 kg, depending on substrate
- Pack quantity: 100
