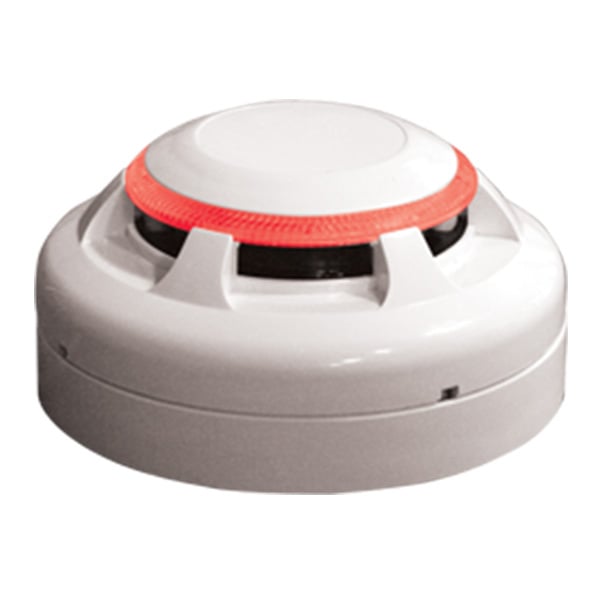

The Nittan EV-DP (part no. F14-82105) is an analogue addressable dual optical smoke detector for Nittan Evolution systems. It uses both infra-red and blue LEDs to measure particles in the chamber more accurately.
From the ratio of the two wavelengths, the EV-DP works out particle size. That lets it tell smoke apart from non-combustion products such as steam and dust. Nittan's patented dual optical technology suits areas prone to false alarms from steam and dust, such as hotels, hospitals and other multiple-occupancy buildings.
Key features
- Dual optical (IR and blue LED) technology to reduce false alarms
- Evolution FSK protocol
- EEPROM addressed with a programmer
- Remote indicator (RIL) and base control outputs
- Omniview 360° LED
Technical specifications
- Operating voltage: 20 to 38 V DC
- Quiescent current: 200 µA
- Alarm current (LED on): 5.2 mA
- Standard: EN 54-7:2018
- Part number: F14-82105
