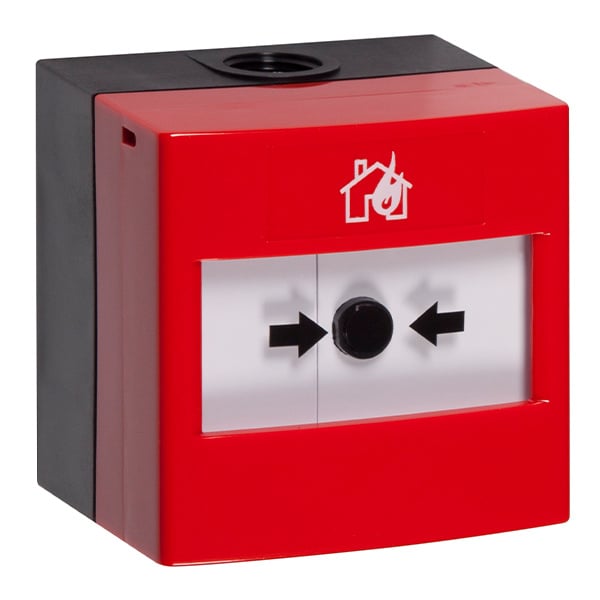

The Nittan EV-MCP2-IP67 (part no. F16-82206) is an Evolution analogue addressable waterproof manual call point in an STI "ReSet" IP67 housing. It suits outdoor and wet locations on Nittan Evolution fire alarm systems.
It is DIL-switch addressed, meets EN 54-11, and replaces the earlier EV-MCP-WP ReSet.
Key features
- STI "ReSet" IP67 housing, resettable
- IP67 rated for outdoor and wet areas
- DIL switch addressed
- Red LED alarm indication
- Replaces the EV-MCP-WP ReSet
Technical specifications
- Operating voltage: 20 to 35 V DC
- Quiescent current: 200 µA
- Alarm current: 2.2 mA
- Ingress protection: IP67
- Standard: EN 54-11:2001 + A1:2005
- Part number: F16-82206
