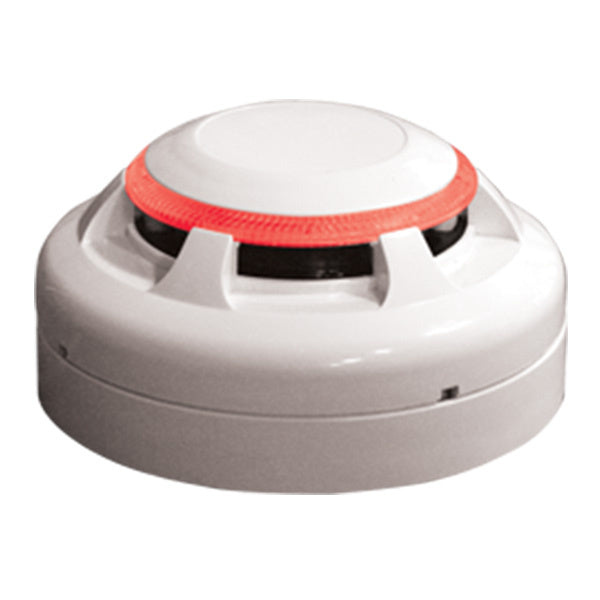

The Nittan EVC-P (part no. F02-82200) is a conventional optical smoke detector from the Evolution Conventional range. It has an internal 375-ohm alarm resistor and works with a range of conventional fire alarm systems. It can also connect to Nittan analogue addressable systems through an EV-ZMU2 zone monitor module.
The detector uses an infra-red LED and photodiode with light-scatter sensing. That makes it most sensitive to the larger smoke particles produced by smouldering fires, and it suits hotels, offices, hospitals and other open, clean spaces.
Key features
- Optical light-scatter smoke sensing
- Internal alarm current limiting resistor (375 ohm)
- Wide operating voltage range of 12 to 32 V DC
- Omniview 360° LED
- Compatible bases: UB-4 standard, UB-6-EV standard, UB-4-SD Schottky diode and STB-4SE-EV deep base
Technical specifications
- Operating voltage: 12 to 32 V DC
- Quiescent current: 50 µA at 24 V DC
- Alarm current: 50 mA at 24 V DC
- Remote LED current: 2.0 mA
- Charging time: 20 seconds
- Operating temperature: -10°C to +55°C; storage -25°C to +60°C
- Relative humidity: 95% RH
- Ingress protection: IP42
- Material: FR-ABS, UL94 V-2
- Dimensions: 104.5 x 50 mm (including base)
- Mass: 118 g (sensor only)
- Standard: EN 54-7:2018; LPCB certificates 041f and 1461a
