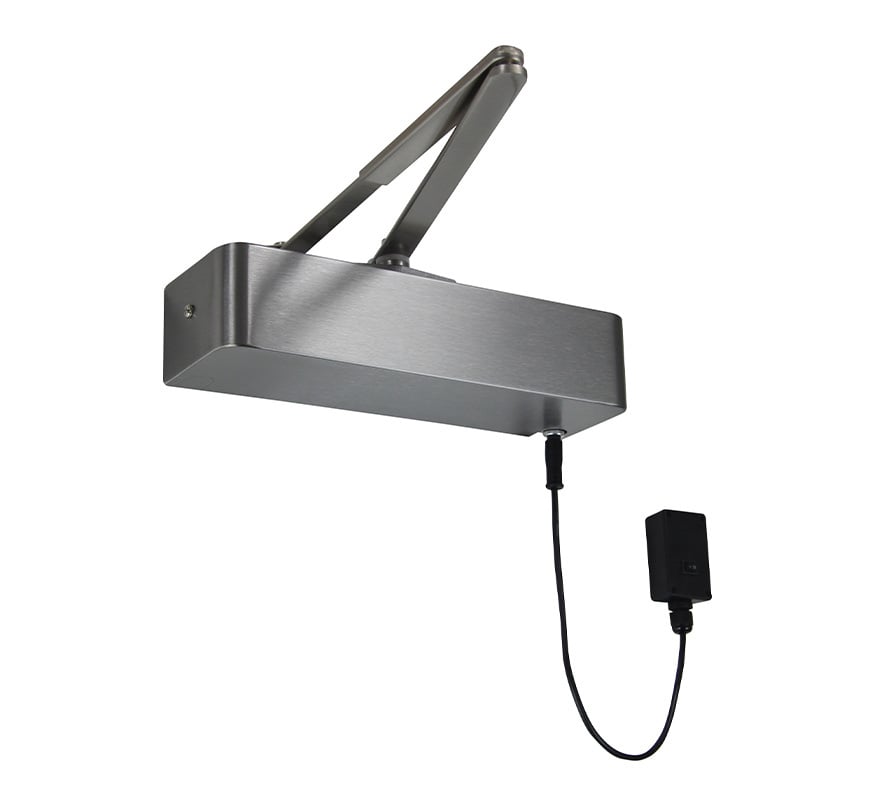

The Rutland Responder 24 (ETS.18314.SNP) is an electromagnetic door closer in a satin nickel finish, offering both hold-open and swing-free modes. It closes the door safely when released by the fire alarm or a manual switch, making it suitable for care homes, hospitals, schools, airports and other high-traffic areas.
It is fully universal: left, right, push and pull side fitting are all available from one box. When interfaced with fire and smoke alarm systems it must be installed by competent installers in accordance with BS 7273-4.
Key features
- Hold-open and swing-free modes
- Activated by fire alarm or manual switch
- Universal fitting from one box (pull side, push side or transom)
- Fire tested to EN 1634-1
- UKCA marked
- 5 year guarantee
- Easy-to-use template fitting instructions
Technical specifications
- Product code: ETS.18314.SNP
- Finish: Satin Nickel
- Power size: EN4 (pull side)
- Supply voltage: 24 V DC (recommended PSU: Rutland PSU.1224.9)
- Current draw (standby and peak): 85 mA
- Opening angle: 150°
- Door width: pull side 385 to 1100 mm; push side 502 to 1100 mm; transom 385 to 1100 mm
- Maximum door weight: <80 kg
- Fire rating: FD30
- Standards: BS EN 1154, BS EN 1155, BS EN 1634-1
- Dimensions (including cover): W 307 x H 67 x D 95 mm
What's in the box
- DL.184 standard door loop (400 mm)
