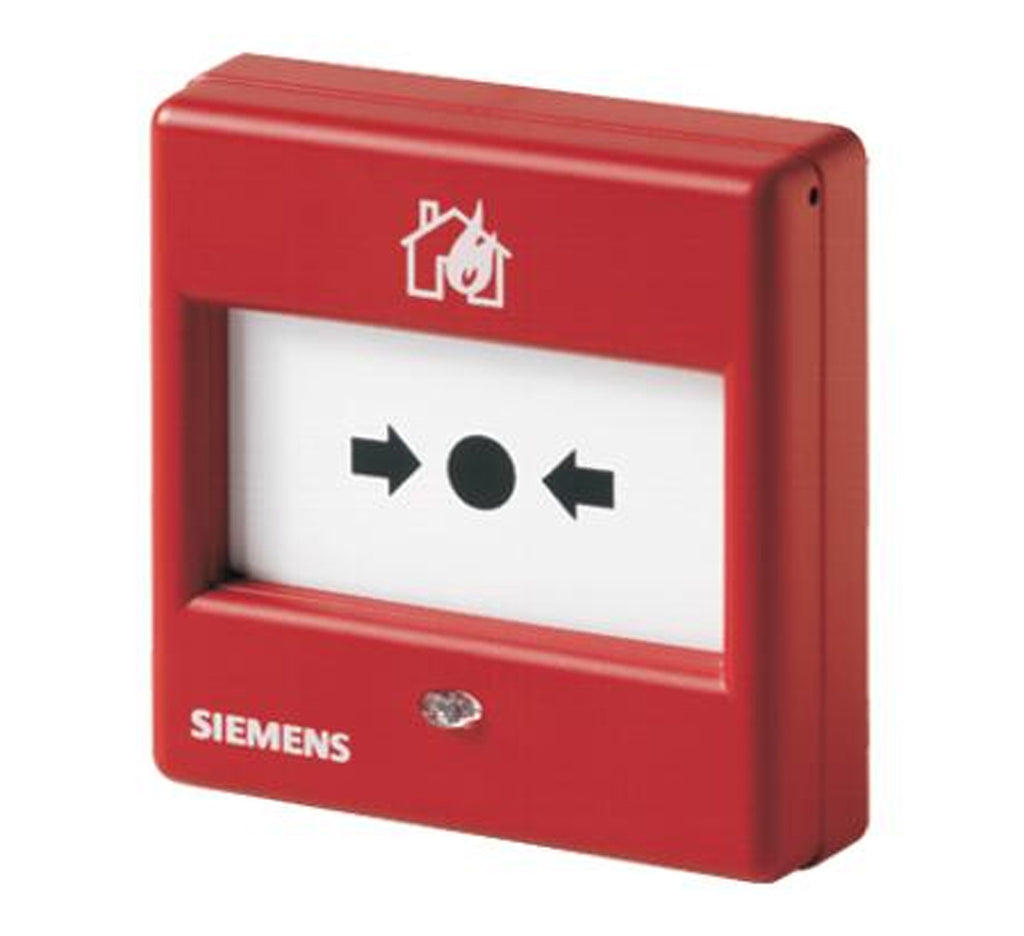

The Siemens FDM365-RP (S54311-F111-A1) is a red addressable manual call point with direct activation for the Cerberus FIT FC360 fire detection system. It communicates on the automatically addressed C-NET detector bus and is fitted with a resettable plastic insert, so it can be reset with a key after activation rather than needing a replacement glass. It works only with a Cerberus FIT FC360 fire control panel. Supplied without a back box.
Key features
- Direct activation, type A to EN 54-11: the alarm is triggered by pressing the plastic insert
- Resettable plastic insert, reset with the FDMK295 key (the same key opens the housing)
- Integrated line separator: a faulty section of the detector line is located by the panel and isolated between two C-NET devices
- Built-in alarm indicator LED
- Address issued automatically during commissioning
- Two-wire installation for all cable types
- Suitable for recessed mounting, or surface mounting with an FDMH295-R or FDMH295-S back box (sold separately)
- Optional FDMC295 protective cover guards against accidental activation
- LPCB approved (126ap/12)
Technical specifications
-
Order number: S54311-F111-A1
-
C-NET operating voltage: 12 to 33V DC
-
Quiescent current: 180µA
-
Communication protocol: C-NET
-
System compatibility: Cerberus FIT FC360
-
Connection terminals: 0.28 to 1.5mm²
-
Colour: Approx. RAL 3000, flame red
-
Protection category: IP44 (indoor use)
-
Operating temperature: -25 to +70°C
-
Storage temperature: -30 to +75°C
-
Humidity: ≤95% rel.
-
Dimensions: 87 x 87mm; 20mm projection when recessed, 53mm with FDMH295 back box (add 7mm with FDMC295 cover)
-
Weight: 0.100kg
-
Standard: EN 54-11, type A
-
Approval: LPCB 126ap/12
