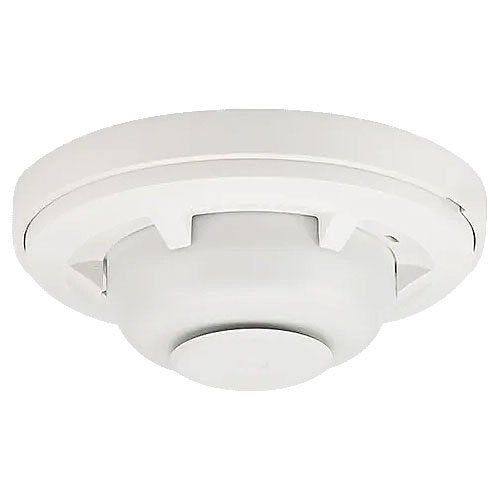

The System Sensor 5601P is a single-circuit mechanical heat detector in a plain housing, combining a 135°F (57°C) fixed-temperature element with a rate-of-rise element. It is part of System Sensor's 5600 series, intended as a low-cost means of property protection and for non-life-safety installations where smoke detectors are not appropriate. The 5600 series is listed to UL 521, and the 5601P has a normally open contact for connection to a compatible fire alarm or signalling circuit.
Key features
- Combined fixed temperature / rate-of-rise (FX/ROR) activation
- Plain housing with no exterior lettering, as offered for residential installations
- Rate-of-rise element is restorable to allow field testing
- External collector drops on activation to identify the unit in alarm
- Reversible mounting bracket for flush or surface back box installation
- Mounts to 3½ in and 4 in octagonal, single-gang, and 4 in square back boxes (with square-to-round plaster ring)
- Easy-to-use terminal screws
Technical specifications
- Model: 5601P (single circuit, normally open)
- Alarm temperature: 135°F (57°C)
- Rate-of-rise threshold: 15°F (8.3°C) rise per minute
- Maximum installation temperature: 100°F (38°C)
- Contact ratings: 6–125 VAC / 3 A; 6–28 VDC / 1 A; 125 VDC / 0.3 A; 250 VDC / 0.1 A
- Input terminals: 14–22 AWG
- Operating humidity: 5 to 95% RH non-condensing
- Dimensions with mounting bracket: 11.6 cm diameter x 4.3 cm high
- Weight: 170 g
- UL protected spacing (10 ft ceiling): 15.24 m x 15.2 m (50 ft x 50 ft)
- Listing: UL 521
