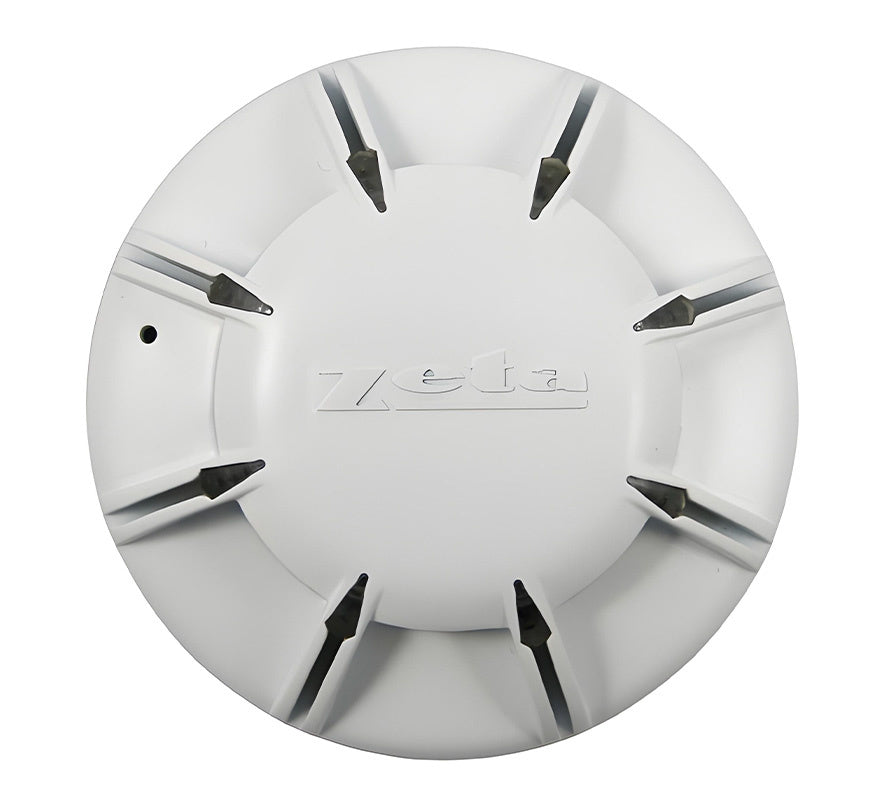

The Zeta Fyreye MKII-OP is a conventional optical smoke detector (EN 54-7) for use on conventional fire alarm zones. It uses a pulsing IR LED and photodiode to detect infra-red light scattered by smoke entering the chamber. It is particularly suited to detecting optically dense smoke from materials such as soft furnishings, PVC, plastics and foam.
Key features
- Optical (photoelectric) smoke detection
- Designed to meet EN 54 requirements
- Lockable to base to prevent unauthorised removal
- Remote LED output
- Compatible with all Fyreye bases: standard or deep, with or without diode (MKII-CB, MKII-CB/D, MKII-DB, MKII-DB/D)
Technical specifications
- Part number: 80-200
- Detector class: optical smoke, EN 54-7
- Operating voltage: 9 to 33 V DC
- Quiescent current: 40 µA; alarm current 34 mA at 24 V DC
- Alarm condition: 2.4% obscuration per metre
- Coverage: 100 m²
- Operating temperature: -10°C to +50°C
- Max humidity: 95% RH non-condensing
- IP rating: IP43
- Start-up time: 10 seconds
- Size with base: 100 x 48 mm
