The Cameo HARK (Help and Assistance Response Kit, CSHK1) is a complete disabled toilet alarm kit in white polycarbonate. It meets the BS requirement for disabled toilets to be fitted with an emergency toilet alarm and helps with compliance with the DDA, BS 8300, Approved Document M and other care standards.
Pulling the red cord lights the reassurance LED on the pull cord unit, illuminates the reset unit and sounds its internal sounder, and triggers the over-door indicator/sounder outside the room. Pressing the illuminated reset switch returns the system to normal. The kit can be linked to multi-way remote indicator panels, disabled refuge outstations and, via a 12V relay unit, to BMS, fire, intruder or paging equipment.
Key features
- Only 3 points to install on a standard system
- Sounder in the reset unit reassures the user that help is on the way
- Braille text on the reset unit, with blue engraved RESET legend
- Twin pull cord rings supplied to meet Approved Document M (one at 100mm and one at 800 to 1000mm from the floor)
- Over-door indicator/sounder with integral power supply, fed from a nearby fused spur
- Expandable with additional pull cords and multi-way remote indicator units (1 to 10 way)
- Suitable for commercial and public buildings, hospitals, restaurants, nursing and retirement homes
Technical specifications
- Product code: CSHK1
- Finish: white polycarbonate
- Supply: 230V AC to the PSU/indicator unit; 12V system wiring
- Pull cord, reset and push button units: 87mm x 87mm, 38mm deep including back box
- PSU/over-door indicator unit: 161mm x 75mm, 35mm deep including back box
- Recommended mounting: reset unit no more than 1200mm above the floor, within reach of the WC

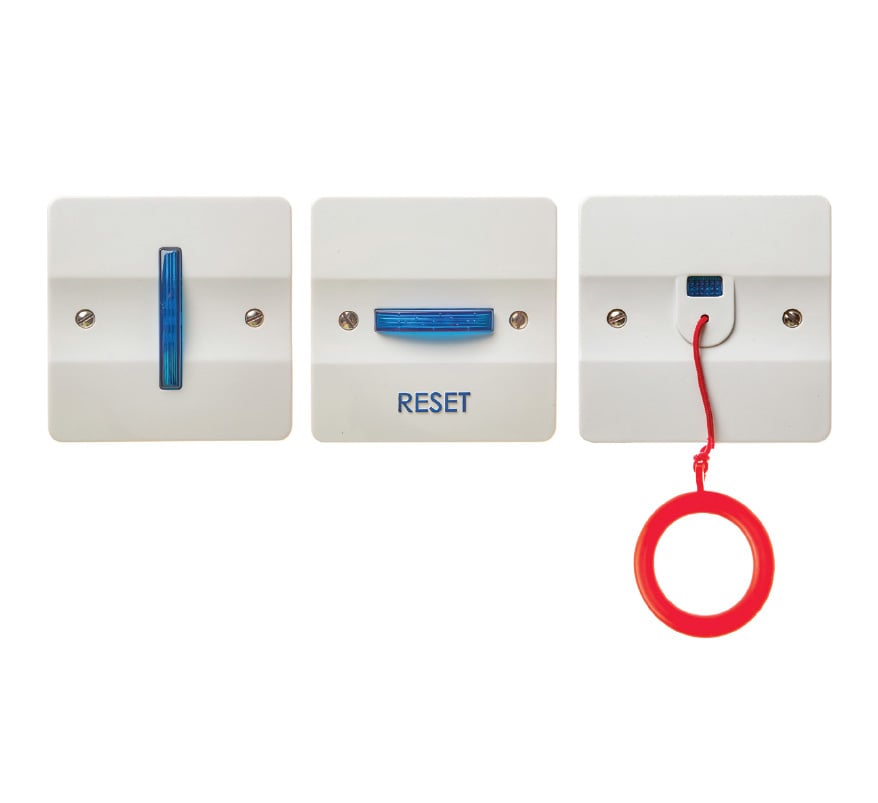

What's in the box
- Pull cord unit with twin red rings
- Reset unit with sounder
- Power supply/over-door indicator unit
- Disabled persons sticker
