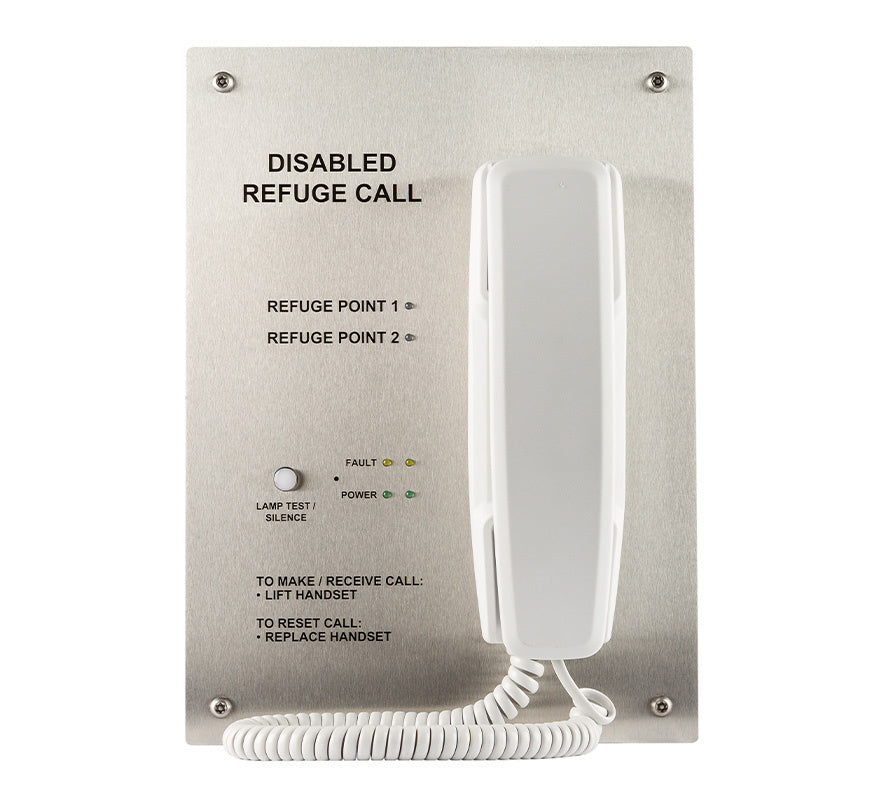

The Cameo Orbital RS2 (ORB/R/RS2F) is a simple two-line disabled refuge control panel for flush mounting. It gives two-way speech between the master handset and up to two Type B refuge outstations, such as Cameo's RCO/GB or RCO/SS, wired radially. The panel is supplied with its standby batteries.
Key features
- Two-way disabled refuge system with a separate blue call indicator for each of the two refuge locations
- The master panel answers or calls out when the master handset is lifted; the call ends when the handset is replaced
- Clear, full duplex audio conversation
- Outstations are radially wired in 2-core 1.5mm enhanced fire-rated cable
- Remote outstation cabling is monitored for open and short circuit faults
- Volt-free changeover contact for remote call-in and fault reporting
- Fire panel inhibit input fitted as standard
- Battery support of 24 + 3 hours
- Compliant with BS 5839-9
- Flush-mounting galvanised steel back box with a stainless steel front panel and black screen print
Technical specifications
- Refuge locations: 2 (radial wired)
- Outstation cabling: 2-core 1.5mm enhanced fire-rated cable
- Mains supply: 220-240V AC (5A lighting-rated supply)
- Maximum system load: 30W
- Standby batteries: 2 x 12V 2.1Ah
- Battery standby: 24 + 3 hours
- Outputs: volt-free changeover contacts for fault and call
- Inputs: fire panel inhibit
- Standard: BS 5839-9
- Front panel dimensions: 307mm (H) x 224mm (W) x 1.5mm (D)
- Flush back box dimensions: 287mm (H) x 204mm (W) x 83mm (D)
- Construction: galvanised steel back box, stainless steel front panel
