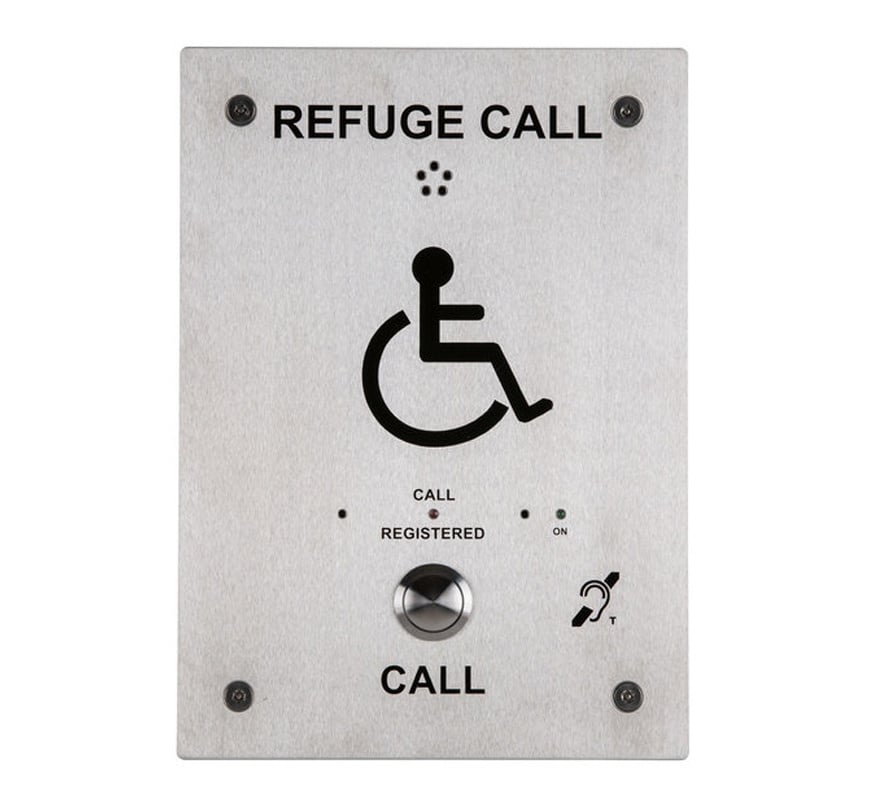

The Cameo RCO/SS is a hands-free Type B disabled refuge outstation with a stainless steel front panel and black screen print. It is designed for Cameo Orbital disabled refuge (emergency voice communication) systems and lets a person in a refuge area call the master control panel at the press of a button. The outstation is a front panel only: fit it to a Cameo back box to suit the installation, either FR/BB (flush, radial wired), FL/BB (flush, loop wired), SR/BB (surface, radial wired) or SL/BB (surface, loop wired).
Key features
- Type B disabled refuge outstation with hands-free operation
- Stainless steel front panel with black screen print
- Vandal-resistant construction
- Integral audio frequency induction loop (AFILS) for hearing aid users
- A call is made by pressing the large momentary push button, which lights the red 'call registered' LED and plays a conventional telephone call tone from the panel loudspeaker
Technical specifications
- Type: Type B disabled refuge outstation, hands-free
- Stainless steel panel dimensions: 259mm (H) x 184mm (W) x 1.5mm (D)
- Flush back box (FR/BB or FL/BB): 225mm (H) x 154mm (W) x 50mm (D), galvanised steel
- Surface back box (SR/BB or SL/BB): 264mm (H) x 189mm (W), black leatherette (RAL9005) mild steel
- Back box: supplied separately
