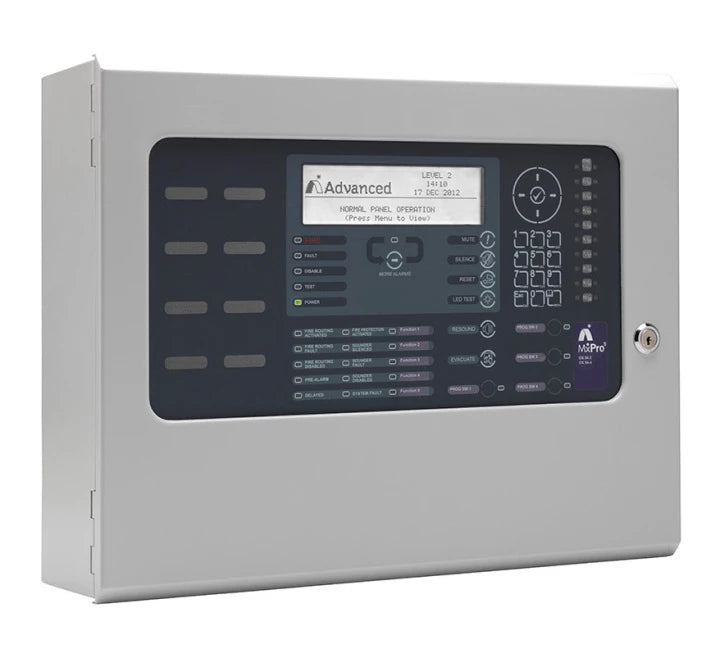

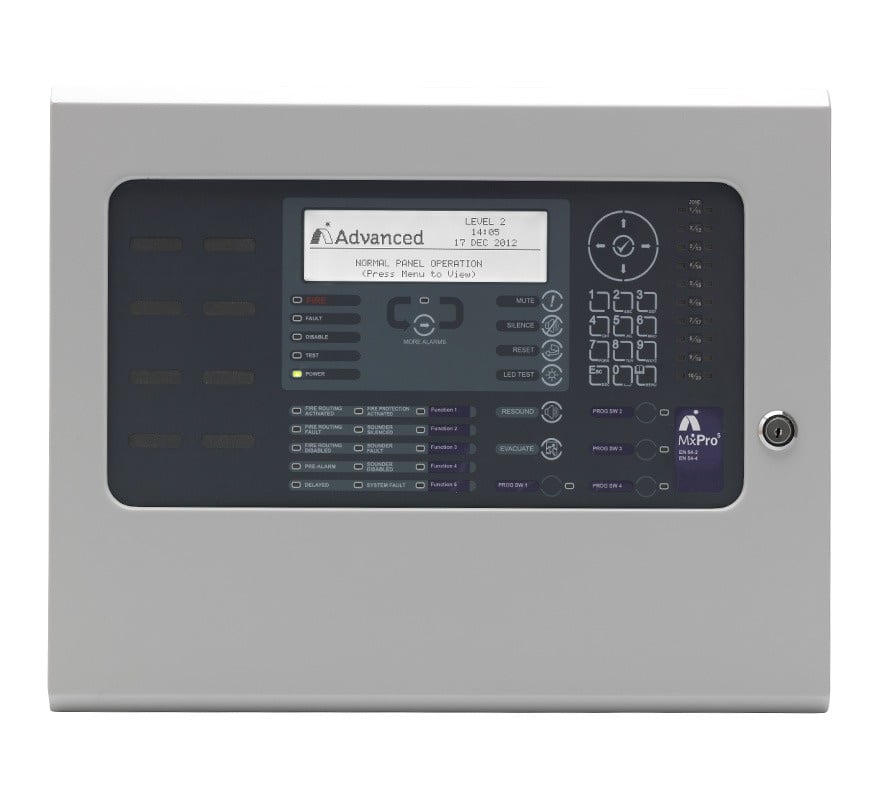

The Advanced MX-5202 is an MxPro 5 series 1-2 loop addressable fire alarm control panel, supplied with two loop cards fitted, for use with Apollo (XP95 / Discovery) and Hochiki ESP protocol devices. MxPro 5 is Advanced's flagship analogue addressable panel range, suitable for sites from small buildings to large, complex multi-area systems.
Key features
- Apollo (XP95 / Discovery) and Hochiki ESP protocol support
- White backlit 240 x 64 graphical LCD with tactile alphanumeric keypad
- 20 programmable zonal LEDs with slide-in labels, plus 25 system LEDs
- 4 programmable function buttons with LED confirmation
- Up to 200 fire zones per panel as standard, and up to 2,000 zones when networked
- Powerful cause-and-effect programming with dynamic zoning and enhanced trace diagnostics
- Installer-friendly auto-learn, loop detection and on-board scope facilities for commissioning and fault finding
- On-board Ethernet for AdvancedLive remote monitoring (UK and Ireland)
- USB and RS232 ports for PC or modem connection; programmable from the keypad or with PC-NeT configuration software
- Robust removable equipment chassis with plug-in connectors
- Integral P-Bus for expansion with option cards; add a network card for a peer-to-peer Ad-NeT network
- 3 year manufacturer's warranty
Technical specifications
-
Loops: 2 (loop cards fitted)
-
Loop current: 500mA per loop
-
Zones: 200 per panel, 2,000 networked
-
Sounder circuits: 2 x 1A programmable
-
Relays: 2 x 1A 30V AC/DC programmable (expandable to 4 with MXP-507)
-
Auxiliary supply: 1 x 24V 500mA
-
Total output current: 5A maximum (loops, sounders and auxiliary combined)
-
Mains supply: 200-240V AC 50-60Hz, 1.4A max
-
Charger: 2A, temperature compensated
-
Event log: 5,000 events and diagnostics plus 500 fire events
-
Enclosure: Steel, IP30, RAL 7035
-
Dimensions (H x W x D): 345 x 430 x 120mm
-
Battery capacity: 24V 4Ah minimum, 24V 12Ah maximum (batteries not included)
-
Operating temperature: -5°C to 40°C
-
Approvals: EN 54-2, EN 54-4
