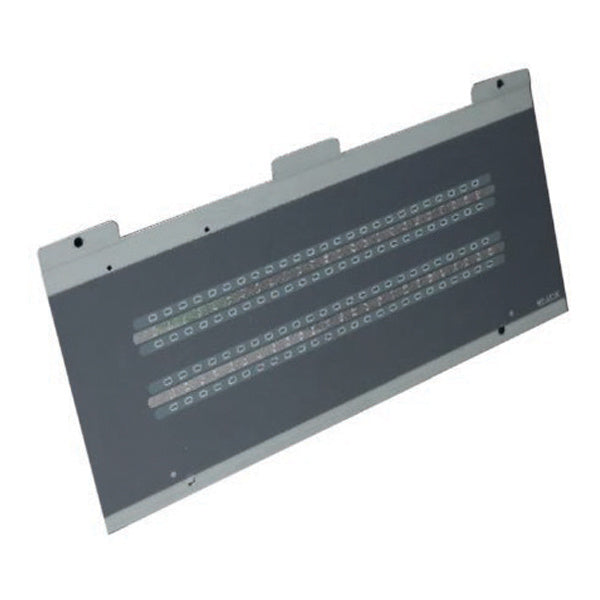

The Advanced MXP-513L-100YL is a 100-zone LED indicator card with yellow LEDs for MxPro 5 control panels in the large enclosure, supplied with a door. By default each LED indicates the status of an individual zone, and every LED is fully programmable through cause and effect, so it can also show conditions such as fault, isolation or output group status.
Key features
- 100 yellow zone LEDs
- Fully programmable LEDs using the panel's cause-and-effect rules
- Supports dynamic zoning on networked or larger stand-alone systems
- Provides individual zonal LED indication at one location in addition to the panel display
- Factory fitted or retrofit
- 3 year manufacturer's warranty
Technical specifications
-
Part number: MXP-513L-100YL
-
LEDs: 100 zone, yellow
-
Enclosure: Large enclosure, supplied with door
-
Compatible panels: MX-5101L, MX-5101D, MX-5201L, MX-5201D, MX-5202L, MX-5202D, MX-5401 to MX-5404 and MX-5401D to MX-5404D
