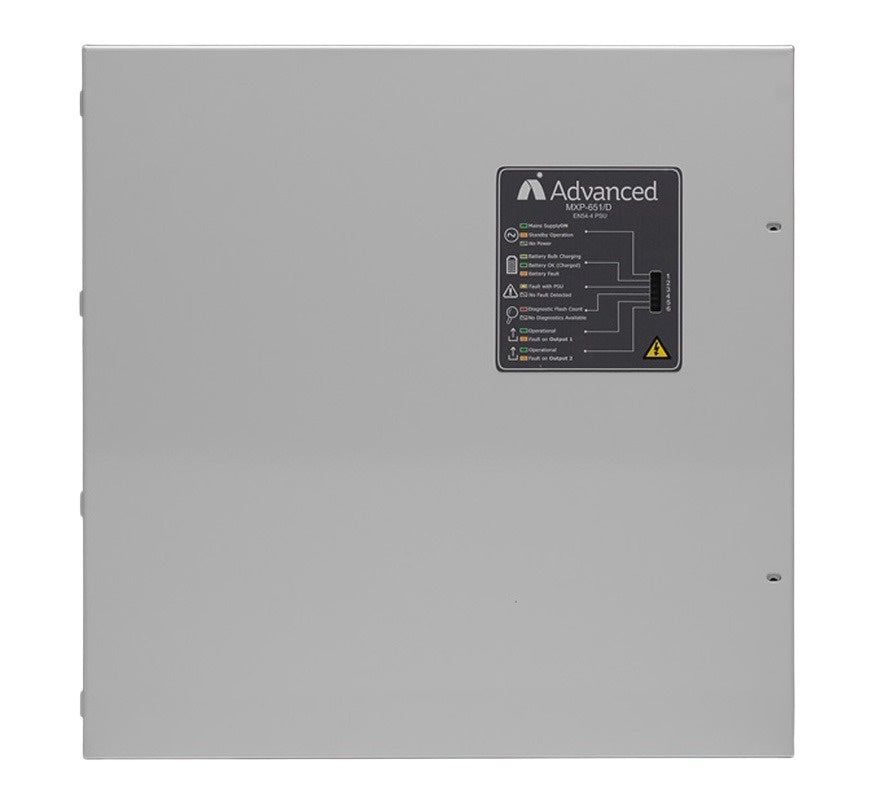

Advanced MXP-651/D 5.0A 24V EN54-4 PSE & Battery Charger - Deep (up to 2x 24Ah or 38Ah batteries)

The Advanced MXP-651/D is a 5.0A, 24V EN 54-4 power supply and battery charger in a deep enclosure with space for two 24Ah or 38Ah batteries. It can be used with any fire alarm system, including automatic opening vent (AOV) systems, and complements the Advanced MxPro 5 range.

Key features

• High-efficiency switch-mode power supply with intelligent battery charging
• Two independently monitored 27.6V DC outputs
• Mains and battery monitoring, with a volt-free fault output
• Exterior status LEDs for quick diagnostics
• Load sharing, supporting rapid charging or brief high-current peak loads
• No output interruption during automatic switchover between mains and battery
• Deep discharge protection disconnects the battery from the load when the output falls below 21.6V
• Self-resetting battery fuse protection
• Suitable for any 24V fire alarm installation specifying EN 54-4 power supplies (e.g. BS 5839), and for EN 12101 smoke control and AOV systems
• Certified by VdS to EN 54-4 and by AFNOR to EN 12101-10

Technical specifications

• Part number: MXP-651/D (deep enclosure)
• Input supply: 195 to 265V AC, 50Hz nominal
• Output voltage: 21.6V DC (Umin) to 28.8V DC (Umax)
• Output current: 5.7A continuous load (ImaxB), 4.0A battery charge (ImaxA), based on 24Ah batteries
• Inrush current: 25A max. at 25°C, 230V AC, for 10ms
• Mains fuse: T3.15A 20mm 250V AC HRC
• Fault output: Volt-free change-over contacts (SPDT), 1A at 30V DC
• Status indication: Mains, battery fault, PSU fault, diagnostic, output 1 and output 2
• Dimensions (H x W x D): 420 x 420 x 180mm
• Battery space: 2 x 24Ah or 2 x 38Ah (batteries not included)
• Weight: 9.7kg excluding batteries; 28kg or 40kg including batteries, depending on size
• Enclosure: 1.2mm steel, RAL 7035, IP30 (indoor use only)
• Operating temperature: -10°C to 40°C at 95% RH
• Storage temperature: -20°C to +80°C
• Approvals: EN 54-4 (VdS 2541), EN 12101-10
