Geofire Doormouse 24V Electromagnetic Fire Door Holder (200N) (3-87-0370)

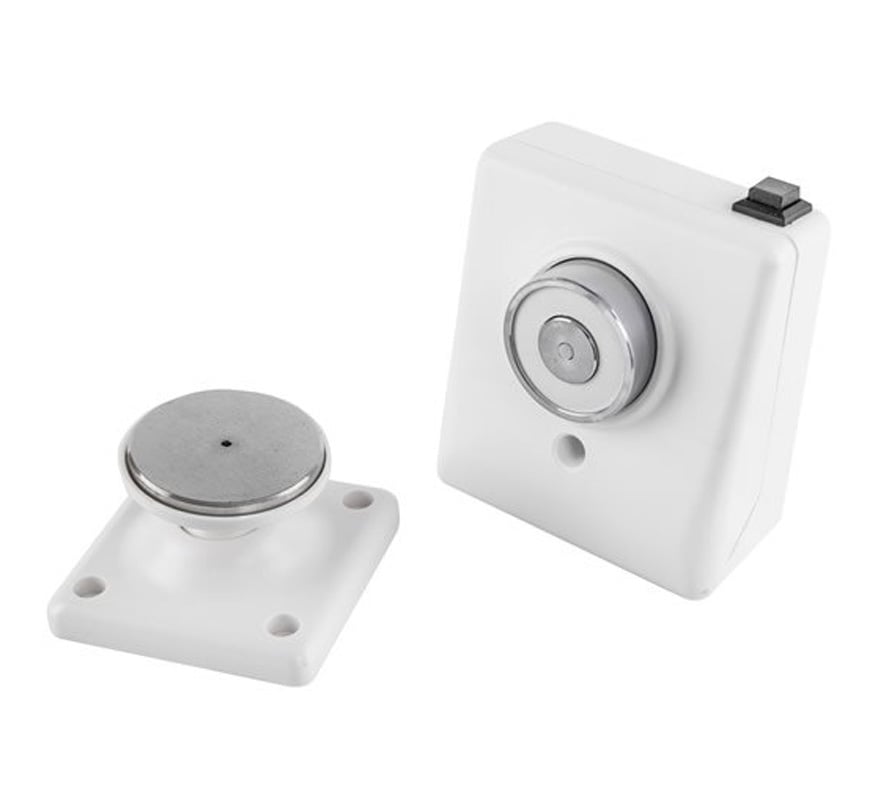

The Geofire Doormouse 24V DC electromagnetic fire door holder (3-87-0370) is a hard-wired, wall-mounted device that legally holds open fire doors where easy access is essential. It connects to a suitable fire alarm system: when an alarm is triggered, power to the holder is cut and the door closes under its own closer. An integral manual release button allows the door to be closed without operating the fire alarm. It is ideal for public areas such as hospitals, offices, hotels and nursing homes.

Key features

• 200N holding force
• Zero residual holding force when de-energised, thanks to a spring-loaded pin
• Integral manual release button
• White fire-resistant ABS casing, surface mounted, with knockouts for surface or rear cable entry
• Internal diodes dissipate back EMF on switch-off, reducing wear at the control unit
• Type tested to EN 1155 and CE marked under the Construction Products Regulation
• 12 month manufacturer's warranty

Technical specifications

• Part number: 3-87-0370
• Supply voltage: 24V DC
• Current: 45mA
• Holding force: 200N
• Residual force: Zero
• Ambient temperature: 0 to 40°C
• Ingress protection: IP51
• Casing: White fire-resistant ABS

What's in the box

• Doormouse door holder
• Adjustable keeper plate
• Fitting instructions
