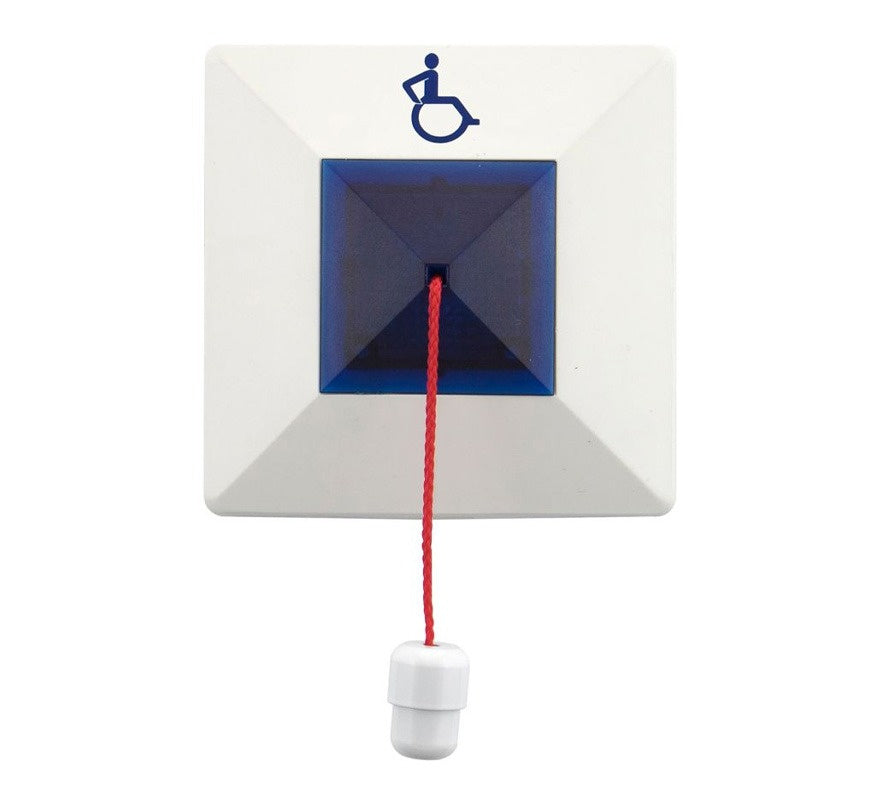

The Eaton CFEAPULL is the pull cord unit for Eaton's emergency assist alarm system, used in accessible (disabled) toilets and similar areas. It forms part of the CFEAPULLKIT standalone kit and is also available on its own as a replacement or additional unit. Operating the dual loop pull cord raises a call, lighting the LEDs on the pull cord unit, cancel unit and over door indicator.
Key features
- Ceiling-mounted pull cord unit with dual loop pull cord
- LED indication when a call is raised
- Fits a standard single gang back box
- Simple 2-core wiring with the PSU, over door indicator and cancel unit
- Lower cord ring set 100 mm from the floor (excess cord cut off)
Technical specifications
- Operating voltage: 12 V DC (nominal)
- Wiring: minimum 2 core 0.4 mm² cable, segregated from mains wiring
- Construction: PC
- Dimensions (H x W x D): 87 x 87 x 30.5 mm (plus cord)
- Mounting: standard single gang back box
