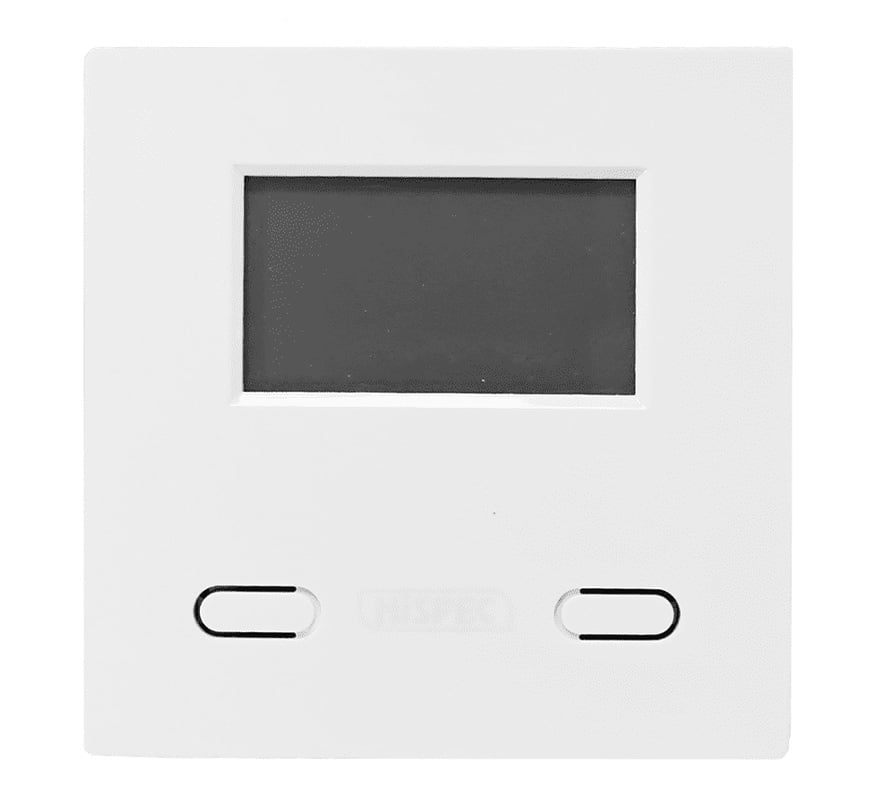

The Hispec HSSA/CO2 is a 230V flush-mounted carbon dioxide and temperature monitor that displays CO2 levels and room temperature in real time. It helps occupants and building managers keep an eye on indoor air quality and ventilation in homes, offices, classrooms and other commercial spaces. It fits a standard single-gang 35mm back box and has adjustable alarm thresholds.
Key features
- CO2 level reading and temperature reading
- Adjustable alarm thresholds
- 8-hour and 24-hour CO2 averages
- 24-hour peak concentration reading
- Fits a 1-gang 35mm back box; easy to install
- Flame-retardant PC/ABS housing
Technical specifications
- Product code: HSSA/CO2
- Supply voltage: 220–240V AC, 50Hz
- Power rating: ≤600mW
- CO2 range: 0–5000ppm
- CO2 accuracy: ±40ppm
- Display resolution: 1ppm
- Response time (T90): under 2 minutes
- Warm-up time: 30 seconds (24 hours for averages)
- Operating temperature: 0°C to 50°C
- Working humidity: 0% to 95% RH
- IP rating: IP30
- Terminal capacity: 1 x 1.5mm²
- Mounting box: 1-gang 35mm (EN 60670-1)
- Material: flame-retardant PC/ABS
- Dimensions: 86 x 40 x 86mm
